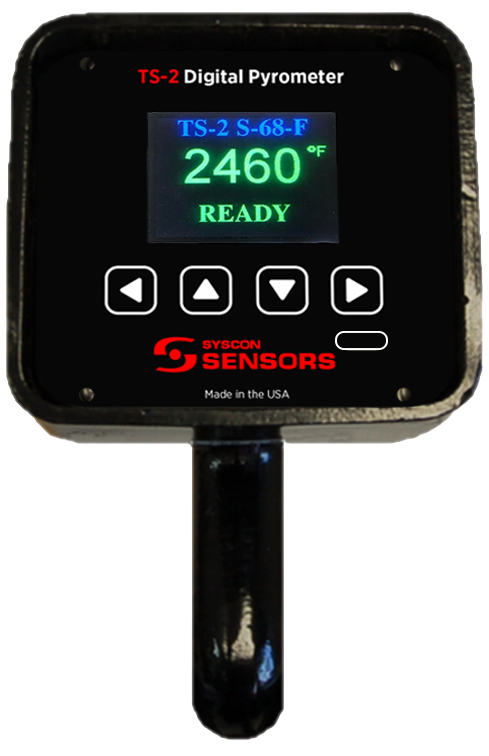

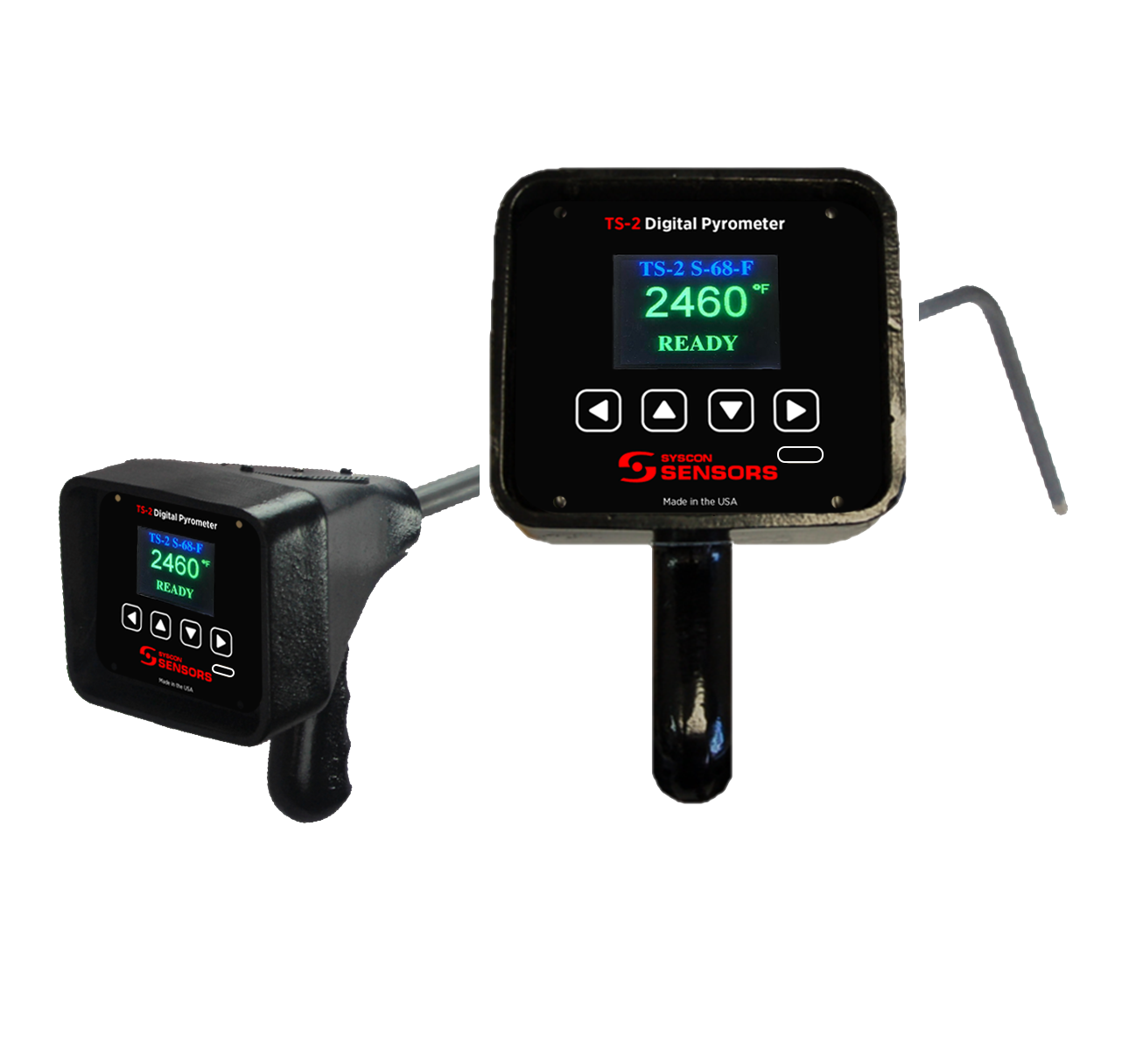

TS-2 Handheld Digital Pyrometer

SYSCON Sensors TS-2 is a wireless, accurate, easy-to-use, and reliable pyrometer, making it the ideal molten metal temperature measuring instrument for Foundries and Steel Mills. It can be used with molten Steel, Bronze, Cast Iron, Aluminum Alloys, Copper, Gold, Brass, and Silver. The SYSCON TS-2 logs historical data for review. Includes wireless capability compatible with the SYSCON HS-1 Heat Sync wall mounted display, and for export to data warehousing systems. The TS-2 is ideally suited for SYSCON’s thermocouple tips, available in a variety of styles and options. Thermocouple tips are sold separately, so be sure to order what you need.

Ideal for Foundries and Steel Mills
Compatible with all standard thermocouple tips
High overall instrument accuracy of ± 1°F (± 0.6°C)
Historical data logging for review, export
Wireless connectivity
Available HS-1 wall mount display
Bright, easily readable display
Auto-on with automatic power shut-off
Rechargeable battery
Rugged, dust-proof, NEMA housing
Smart charging circuit with overload protection
Built on 50 years of industry experience

Input	2 Thermocouple / Low Voltage Inputs
Thermocouple Type	S, K, R, B
Thermocouple Calibration Standard	IPTS 48, 68, or 90
Operating Mode	Peak Detection or Continuous
InstrumentAccuracy	±1°F from 400°F - 3300°F (±0.6°C from 205°C - 1815°C)
Recommended Temperature Ranges	Type S,R: 400°F - 3182°F (205°C - 1750°C) Type K: 400°F - 2462°F (205°C - 1350°C) Type B: 400°F - 3308°F (205°C - 1820°C)
Battery	5800maH 18650 Li-ion battery
Battery Charger	USB-C standard
Charging Time	4 hours (0-100% charge)
Housing	NEMA rated dust proof panel
Weight	4.5 lb (2.5 kg)
