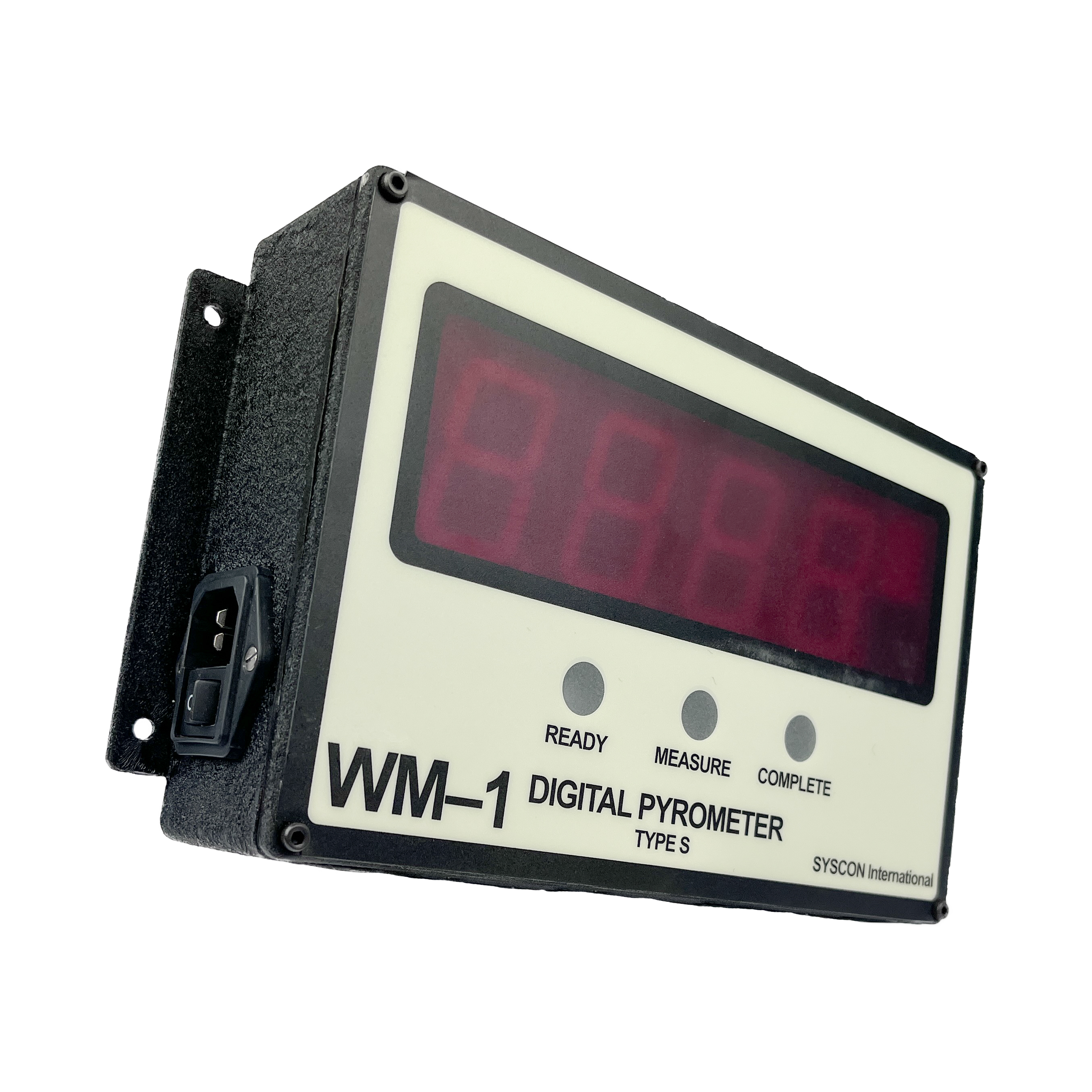

WM-1 Wall-Mount Pyrometer
View Price
Get it by Nov 02 – Nov 04
SYSCON Sensors WM-1 is an accurate, easy-to-use, rugged and reliable wall mounted temperature measurement system designed for Foundries and Steel Mills. It can be used with molten Steel, Bronze, Cast Iron, Aluminum Alloys, Copper, Gold, Brass, and Silver. The WM-1 is ideally suited for SYSCON’s thermocouple tips, available in a variety of styles and options.
| Input | 1 Thermocouple Input |
|---|---|
| Thermocouple Type | Type S, R, B or K |
| Calibration Standard | IPTS 48, IPTS 68, or ITS 90 |
| Instrument Accuracy | ±3°F (±2°C) |
| Operating Temperature | 0°F - 122°F (-17°C - 50°C) |
| Ambient Humidity | 0 – 90% Non-Condensing |
| Recommended Temperature Ranges | Type S: 400°F - 3182°F (205°C - 1750°C) Type K: 400°F - 2462°F (205°C - 1350°C) Type B: 400°F - 3308°F (205°C - 1820°C) |
| Sound Level | 95 dB at 12 V |
| Input Power | 100 - 240 V AC 60 Hz |
| Dimensions | 10 |
| Weight | 2.4 lb (1.1 kg) |
