TS-1 Handheld Digital Pyrometer
View Price
Get it by Nov 02 – Nov 04

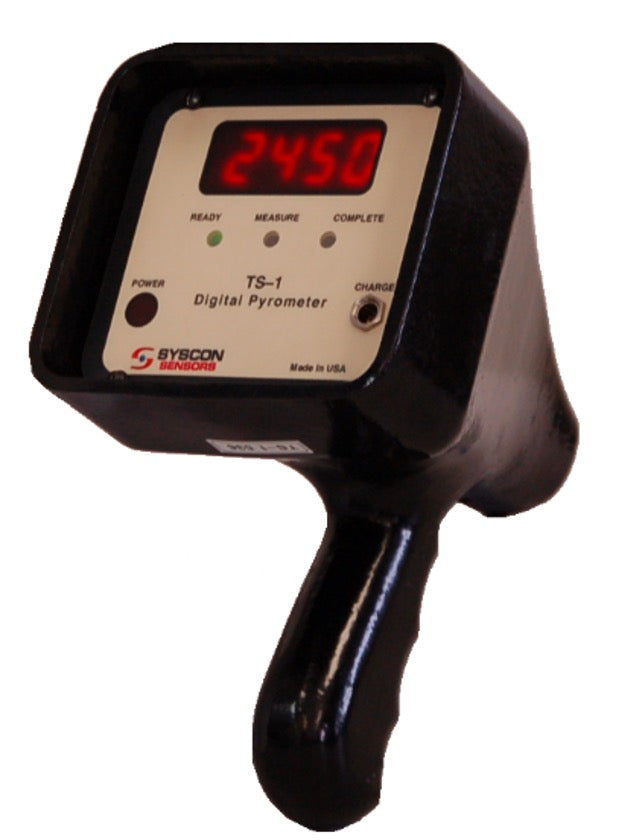

SYSCON Sensors TS-1 is a handheld, accurate, easy-to-use, and reliable pyrometer, making it the ideal molten metal temperature measuring instrument for Foundries and Steel Mills. It can be used with molten Steel, Bronze, Cast Iron, Aluminum Alloys, Copper, Gold, Brass, and Silver. The TS-1 is ideally suited for SYSCON’s thermocouple tips, available in a variety of styles and options. Thermocouple tips are sold separately, so be sure to order what you need.
| Input | 1 Thermocouple Input |
|---|---|
| Thermocouple Type | S, K, R, B |
| Thermocouple Calibration Standard | IPTS 48 or IPTS 68 |
| Operating Mode | Peak Detection or Continuous |
| InstrumentAccuracy | ±3°F from 400°F - 3300°F (±2°C from 205°C - 1815°C) |
| Recommended Temperature Ranges | Type S,R: 400°F - 3182°F (205°C - 1750°C) Type K: 400°F - 2462°F (205°C - 1350°C) Type B: 400°F - 3308°F (205°C - 1820°C) |
| Battery | Four 1.2V 600mAh AA NiMH (Nickel-metal hydride) |
| Battery Charger | 100 - 240V 60Hz AC Input 12V 1A DC Output |
| Charging Time | 90 minutes (0-100% charge) |
| Housing | NEMA rated dust proof panel |
| Weight | 4.5 lb (2.5 kg) |
