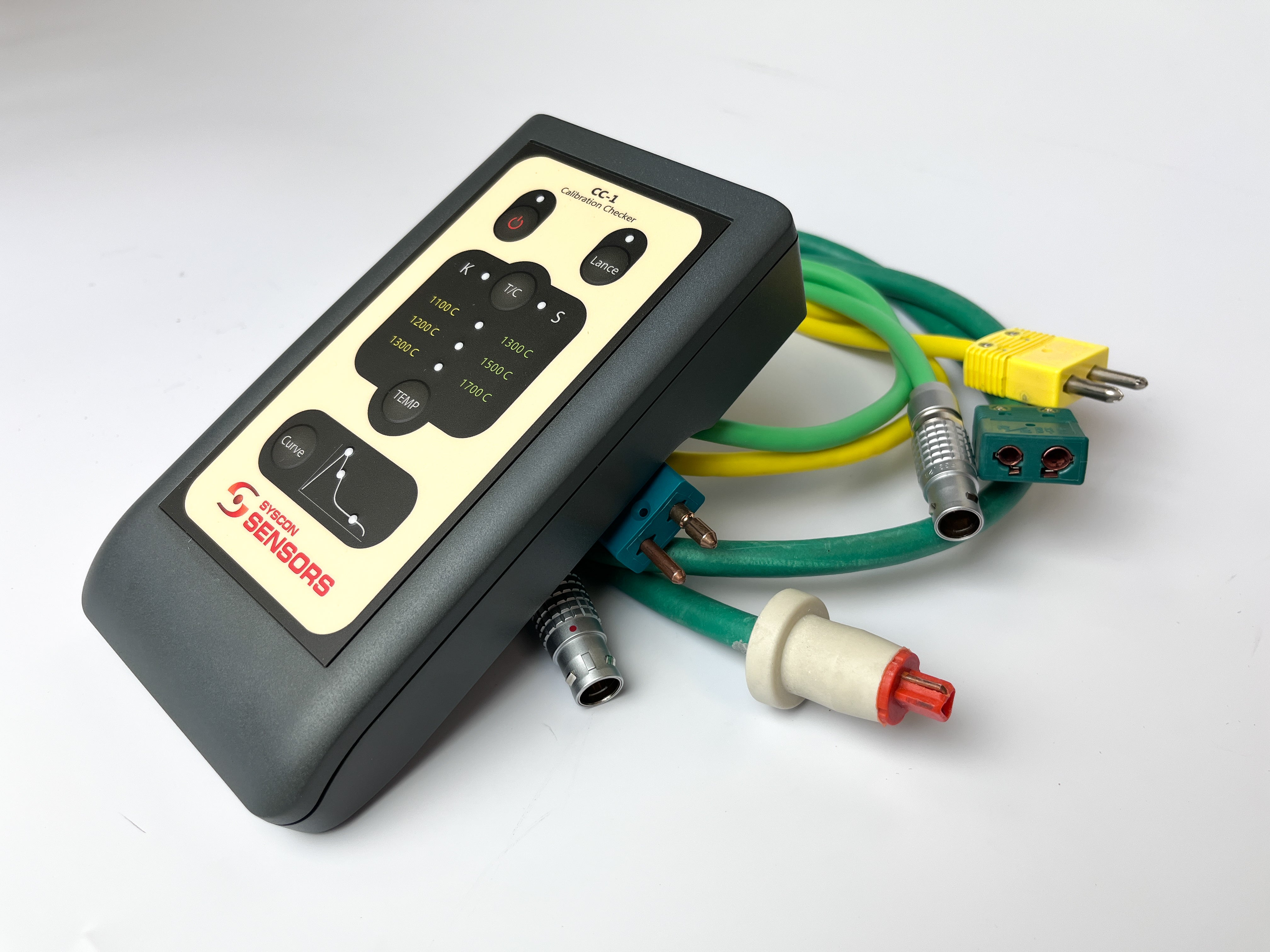

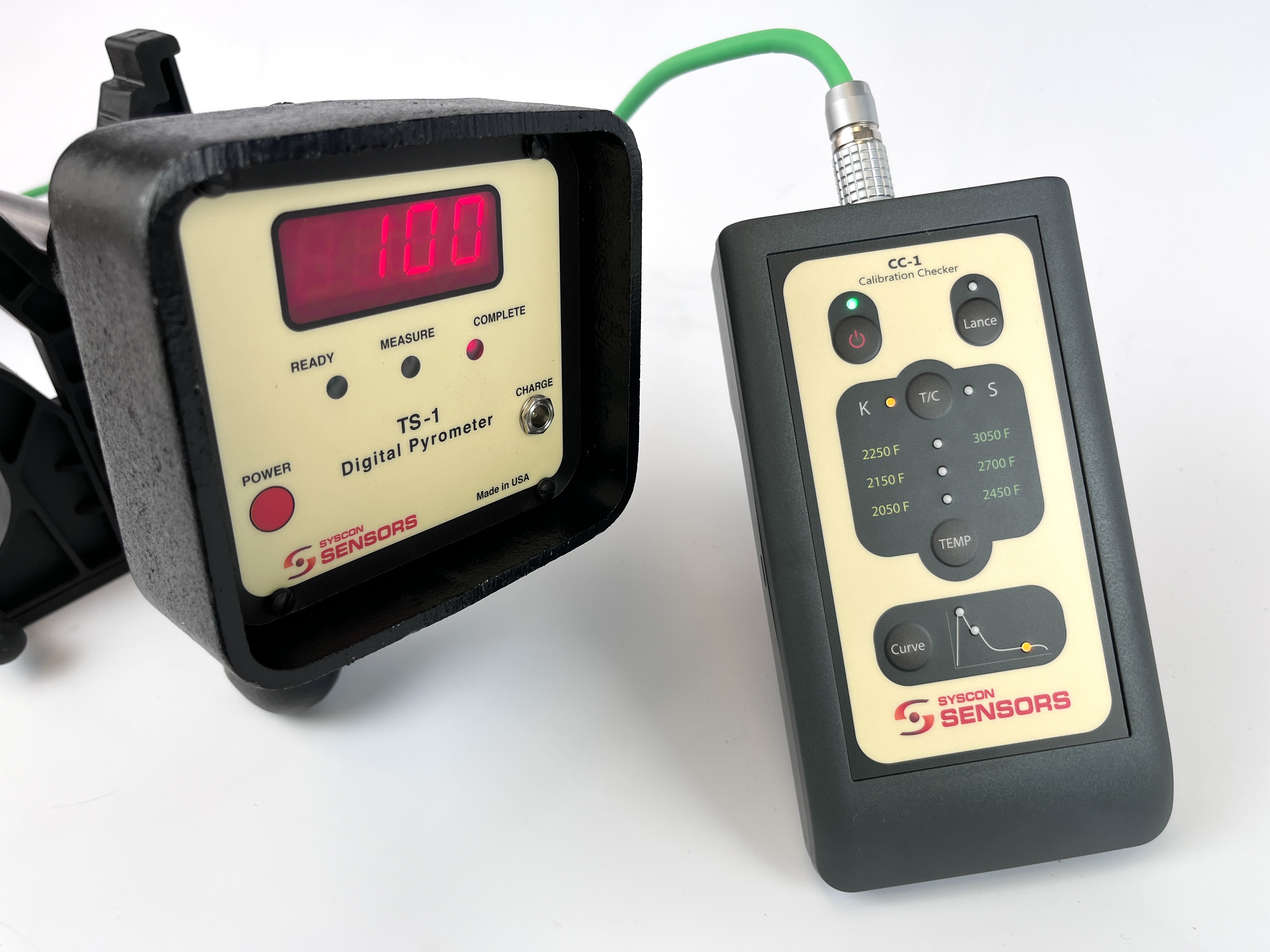

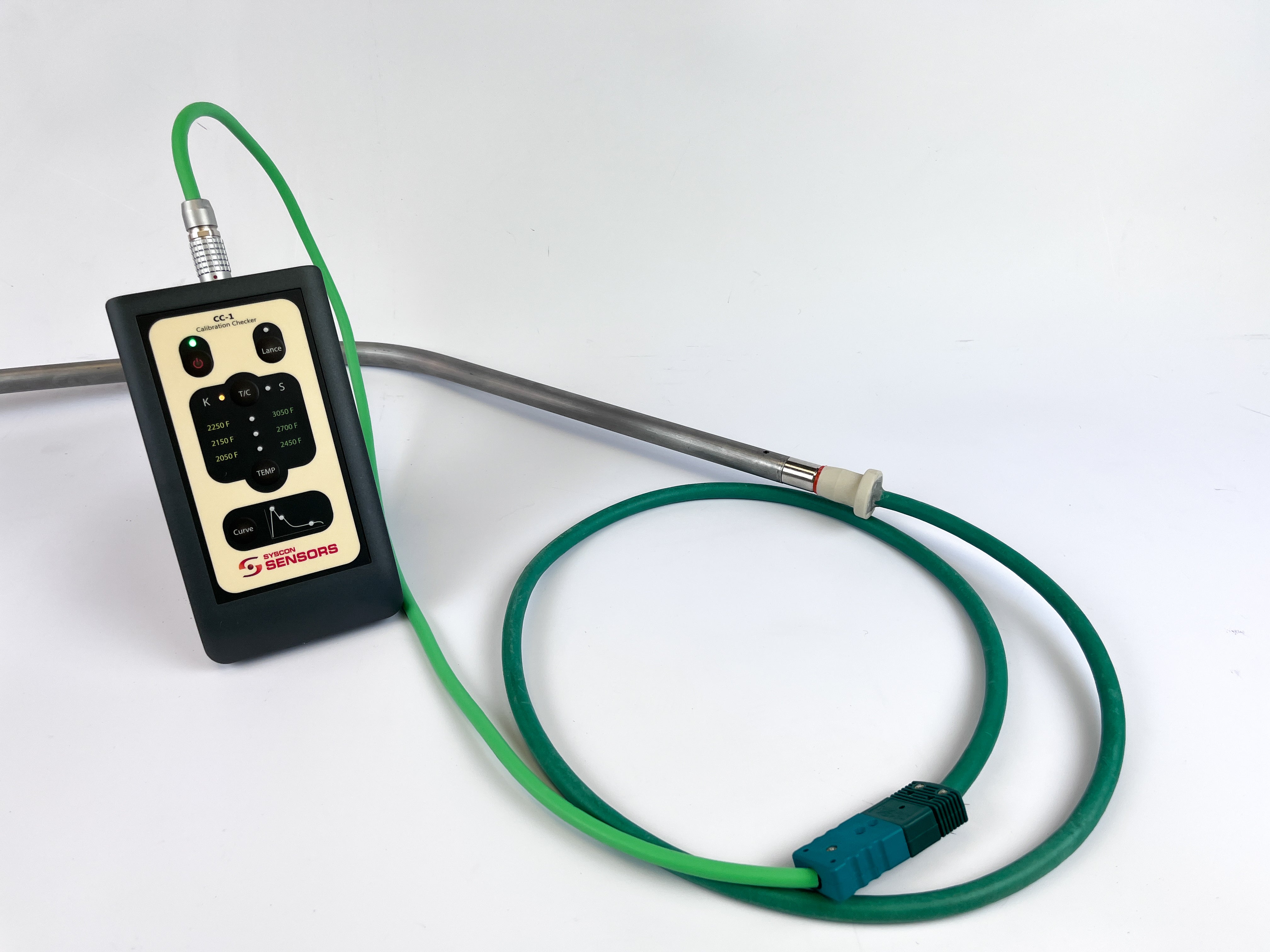

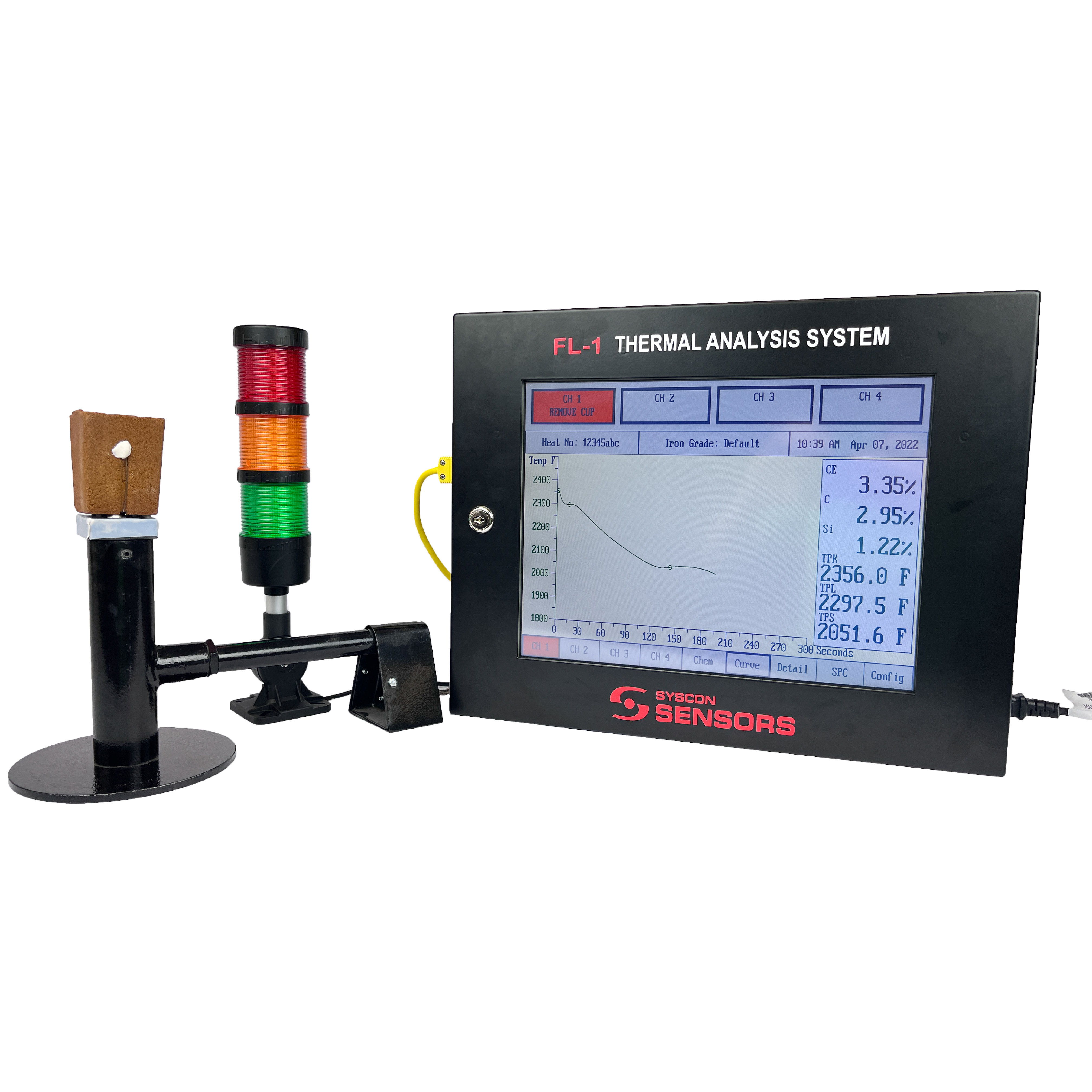

SYSCON Sensors CC-1 provides quick and accurate calibration checking for Pyrometers and Lab analyzers. The device generates cold-end compensated voltages corresponding to three standard temperatures and includes lance resistance check functionality. A standard curve can be generated to plot on an FL-1, Quick-Lab Datacast, or similar cooling curve lab analyzer. Includes test leads, battery charger, and protective case.

  • Easy to operate Lance Check, Temp Check, and Curve Simulation features

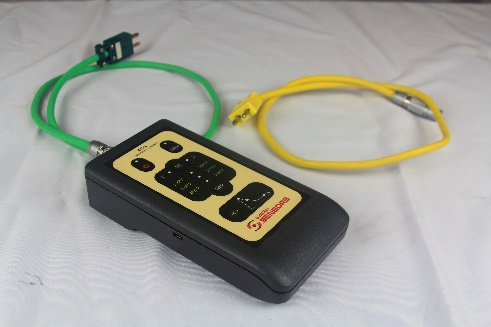

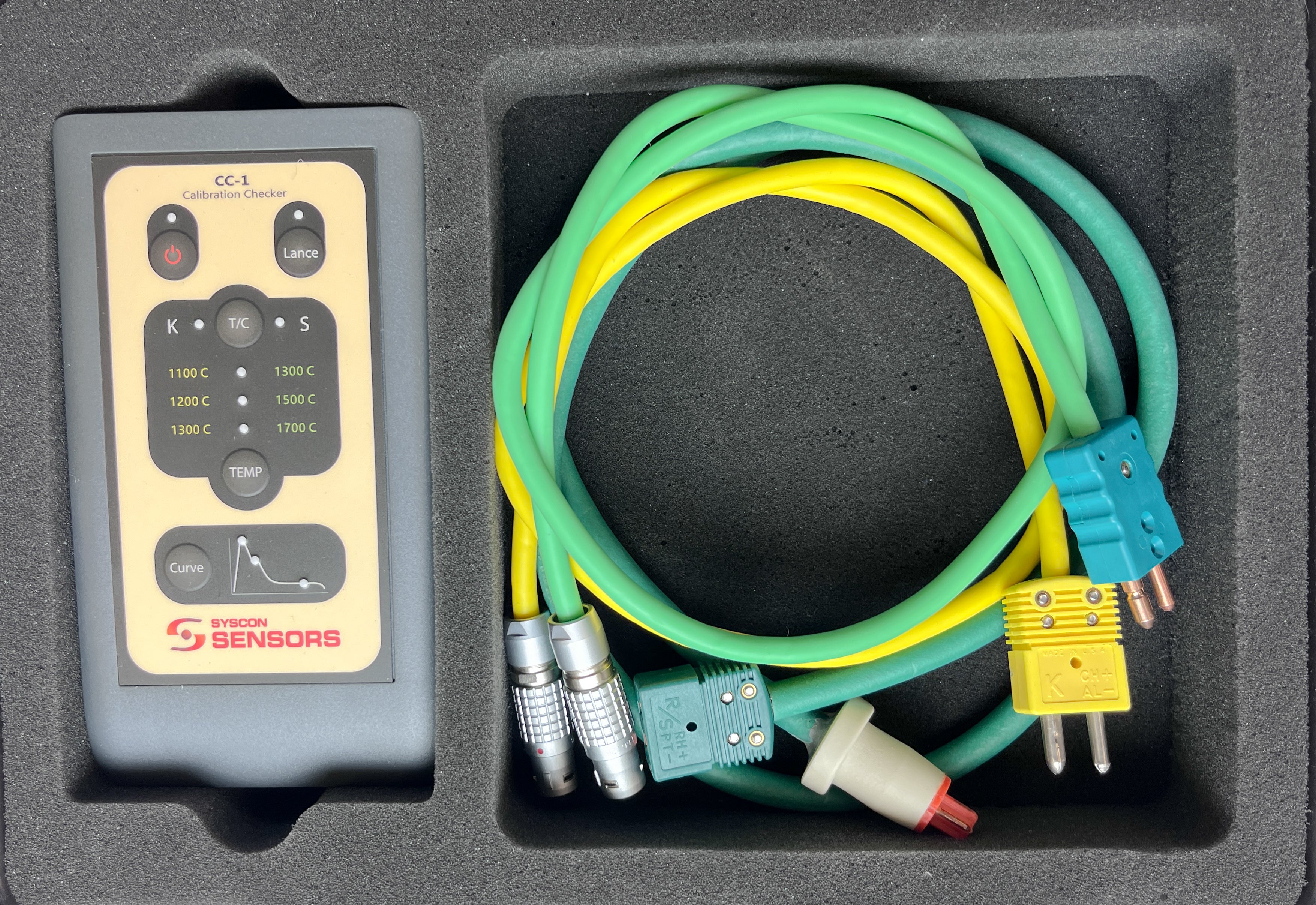

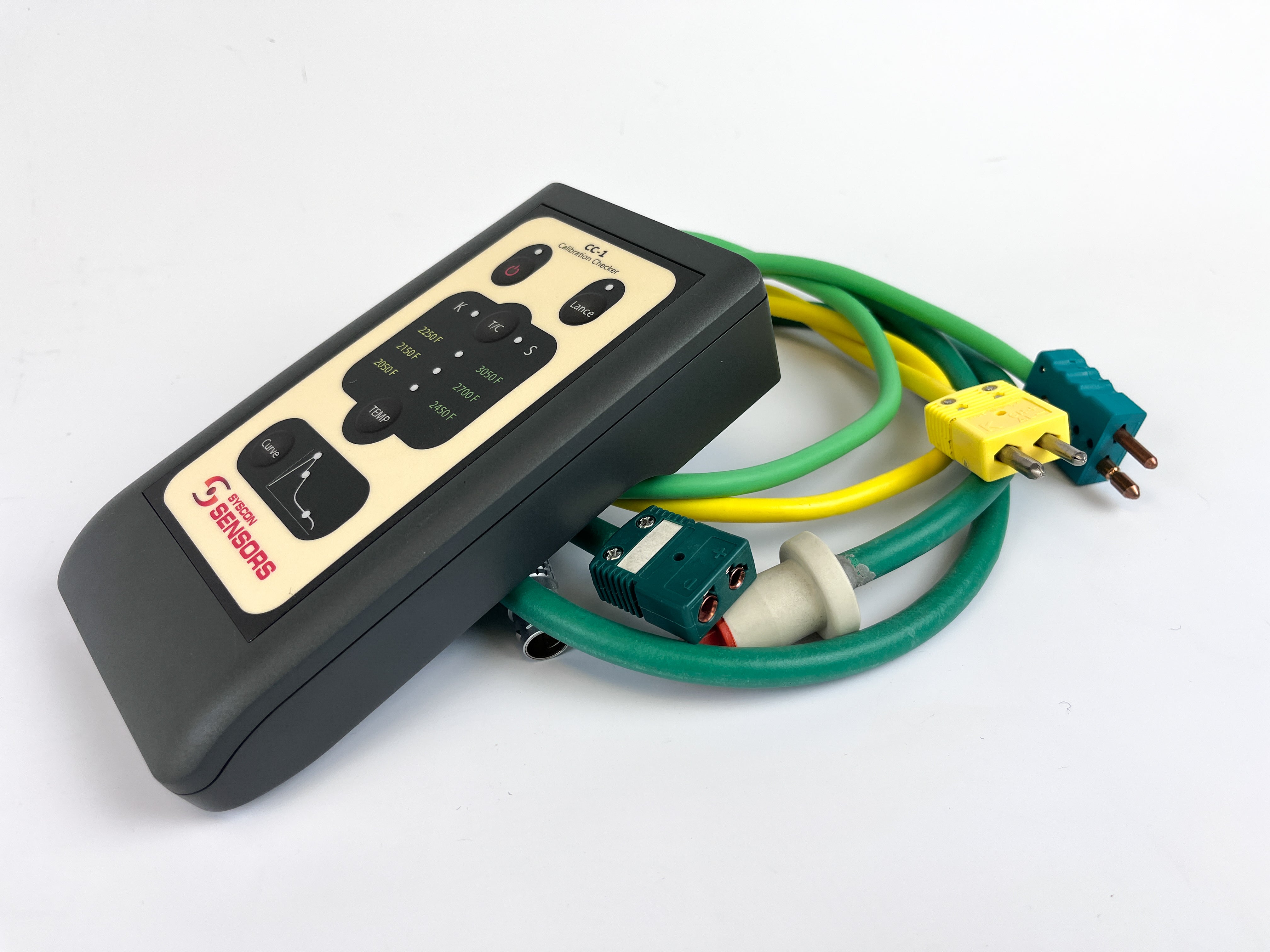

  • Includes standard S and K type test leads and plugs
  • Toggle between S and K type output
  • High precision DAC and cold-end temperature sensor generate precise microvolt output
  • High overall instrument accuracy of ± 1.8°F (± 1°C)

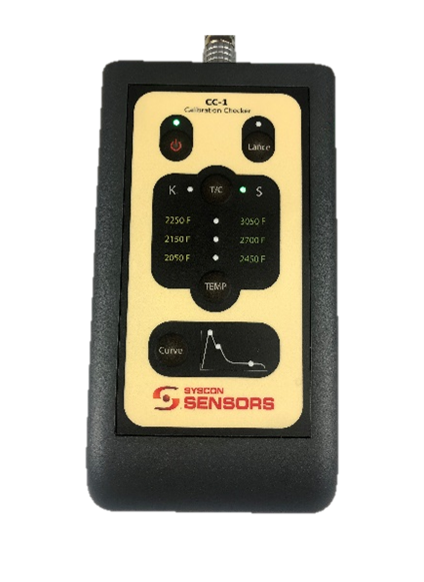

  • Color coded LEDs to indicate output status
  • +/- 50 hours of runtime on full charge
  • Automatic power shut-off after 5 minutes
  • Smart charging circuit with overload and temperature protection
  • IP 65 and UL 94 V-0 rated case – no mechanical switches

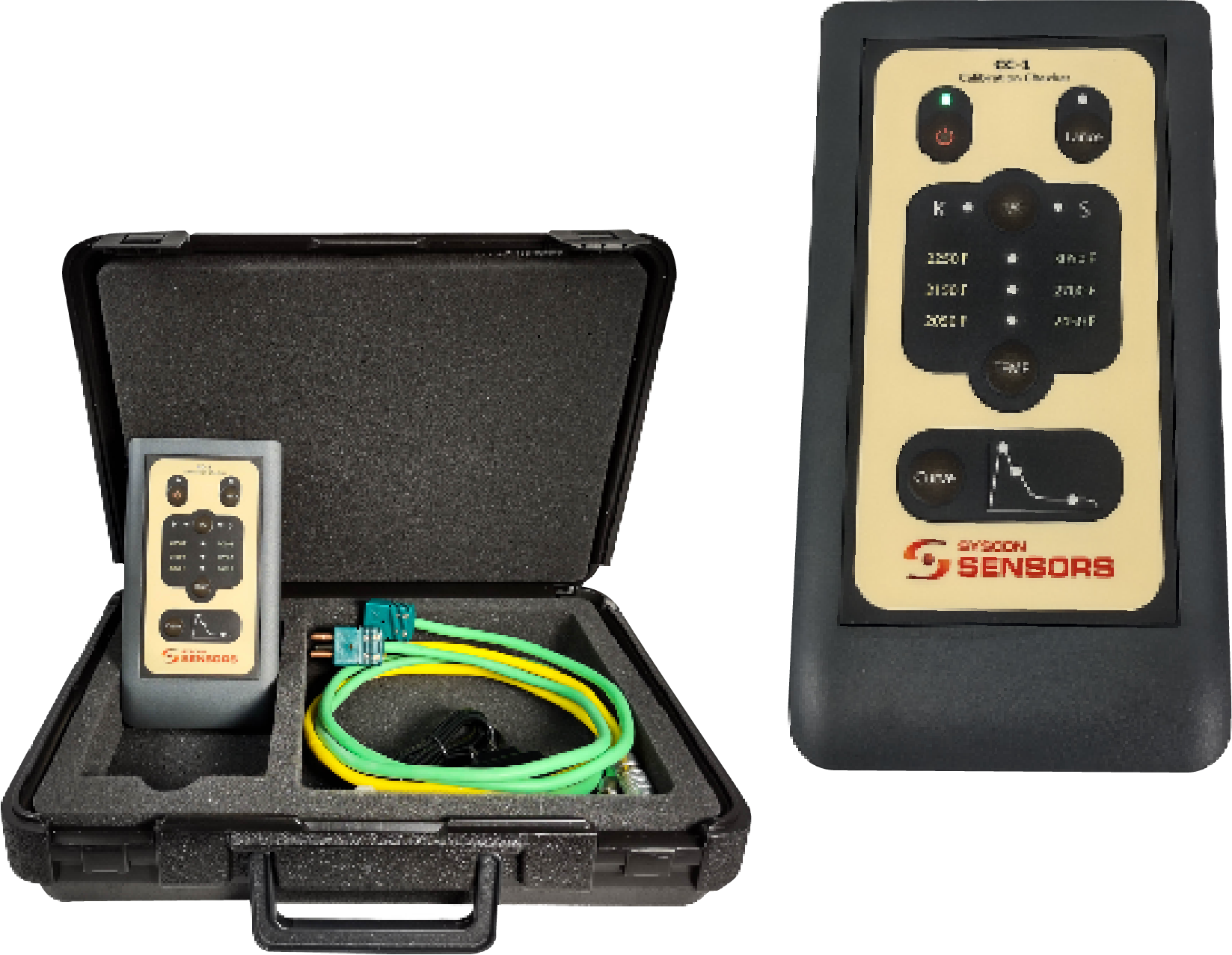

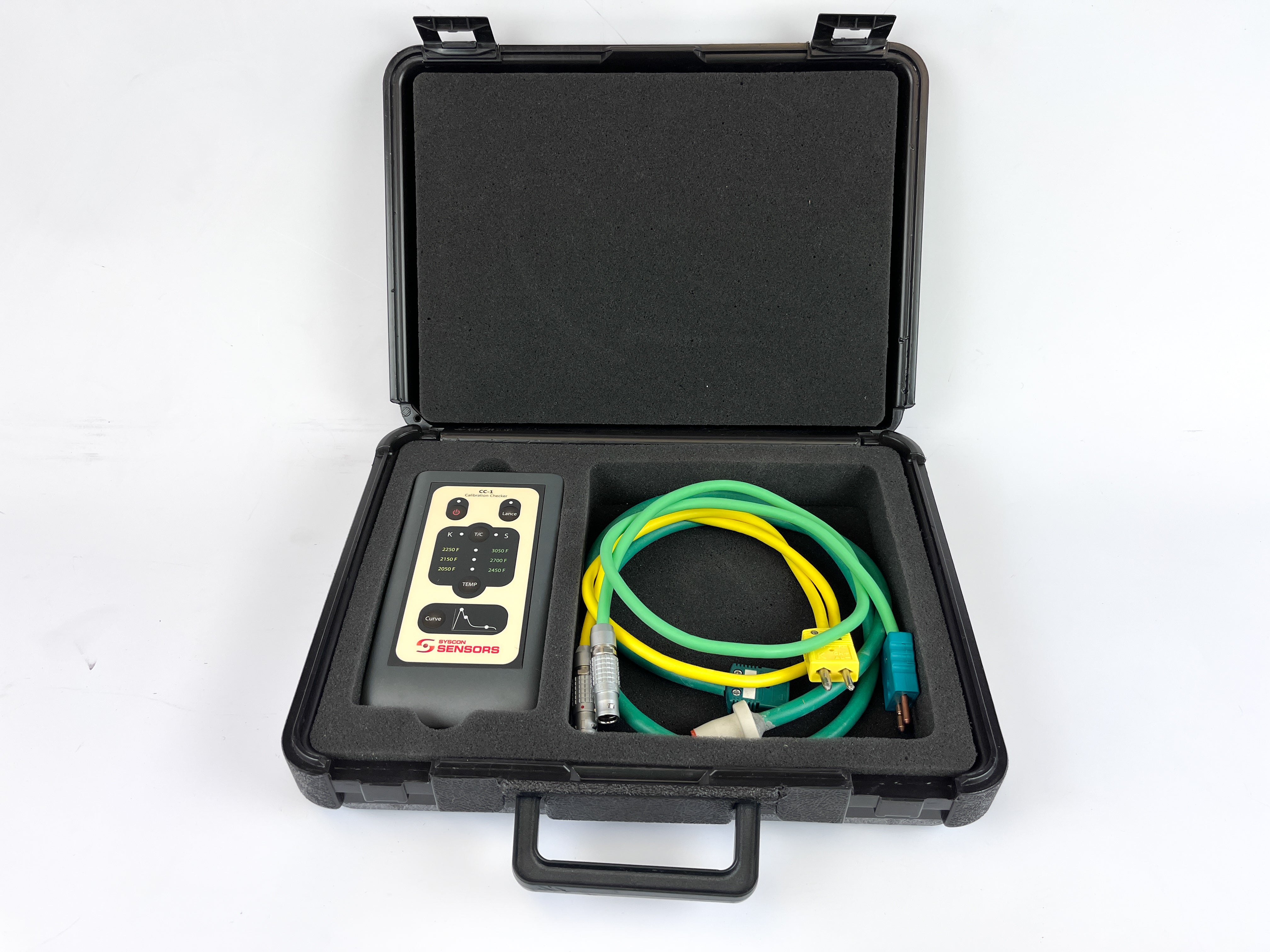

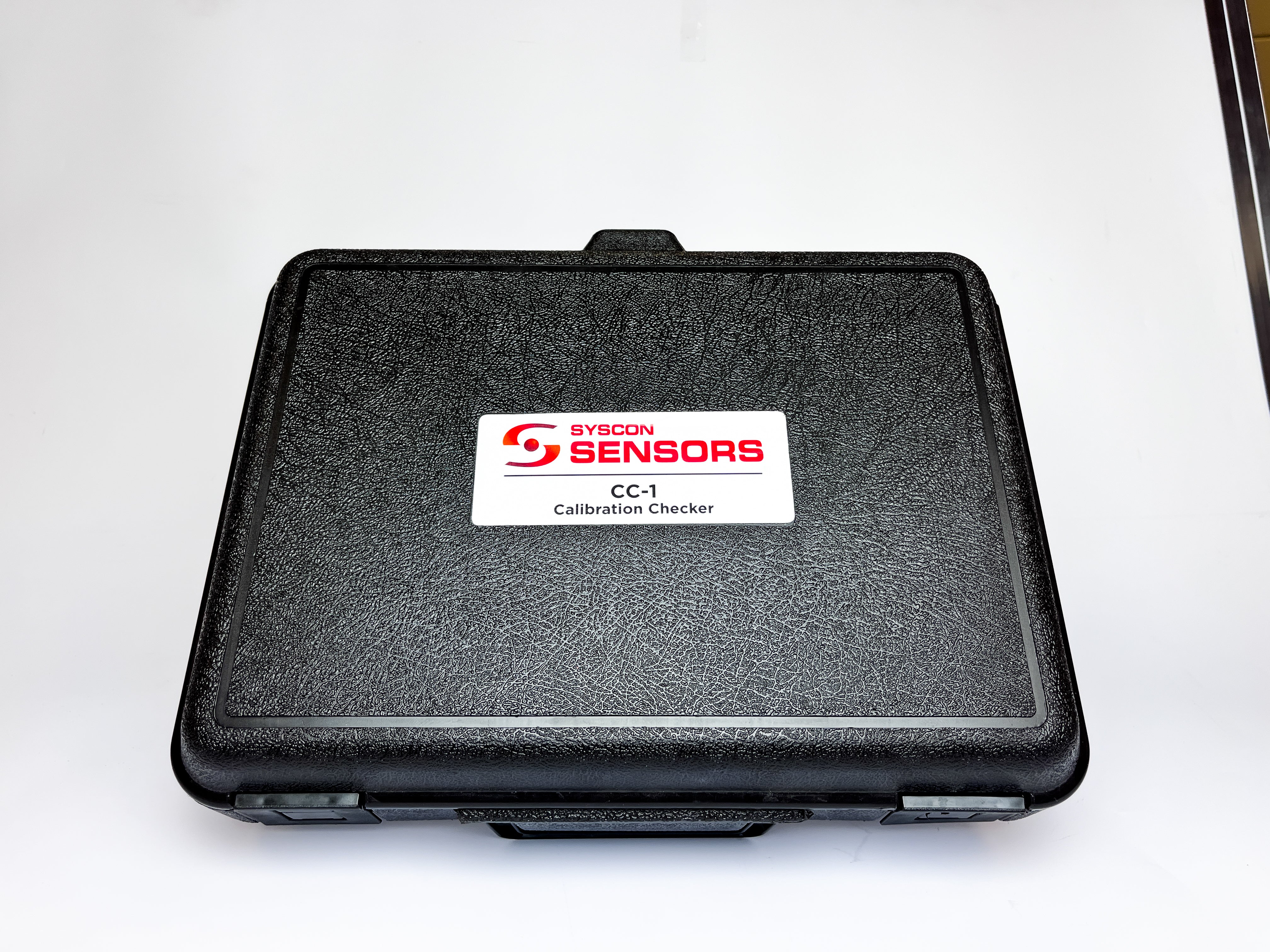

  • Protective storage case included
Output Dual Thermocouple Output
Thermocouple Type S, K
Calibration Standard IPTS 48, 68, 90
Operating Mode Lance check, Temp Check, Curve Simulation
Instrument Accuracy ±1.8 °F (±1°C)
Operating Temperature 32˚F - 140˚F (0°C - 60˚C)
Ambient Humidity 0 – 90% Non-Condensing
Battery Li-Polymer 3.7 V 2500 mAh
Battery Charger 100 - 240 V 60 Hz AC Input
5V 1 A DC Output
Charging Time 150 minutes (0 – 100% charge)
Housing IP 65 AND UL 94 V-0 rated box
Storage Temperature 0˚F - 185˚F (-17°C - 85˚C)
Scale: F
