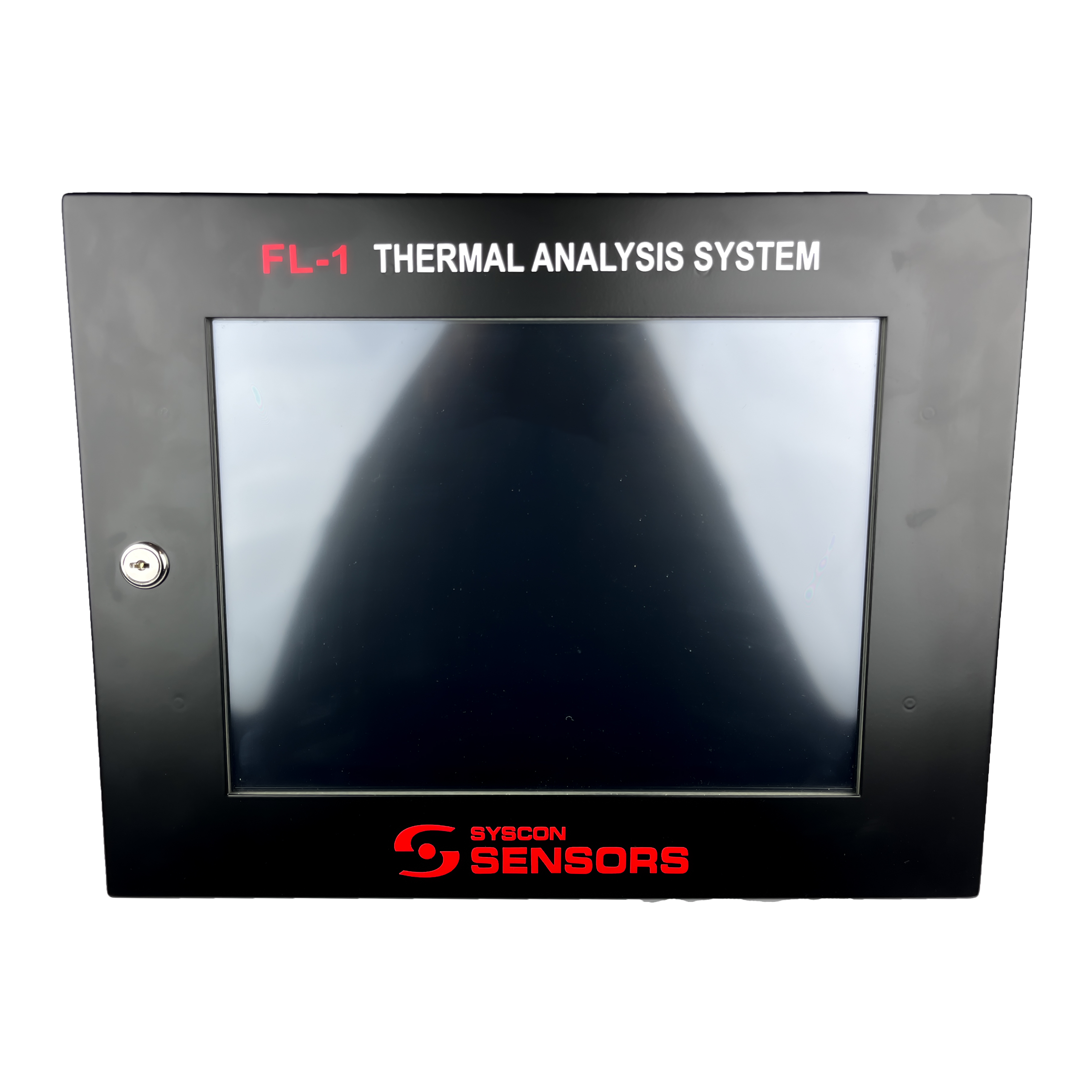

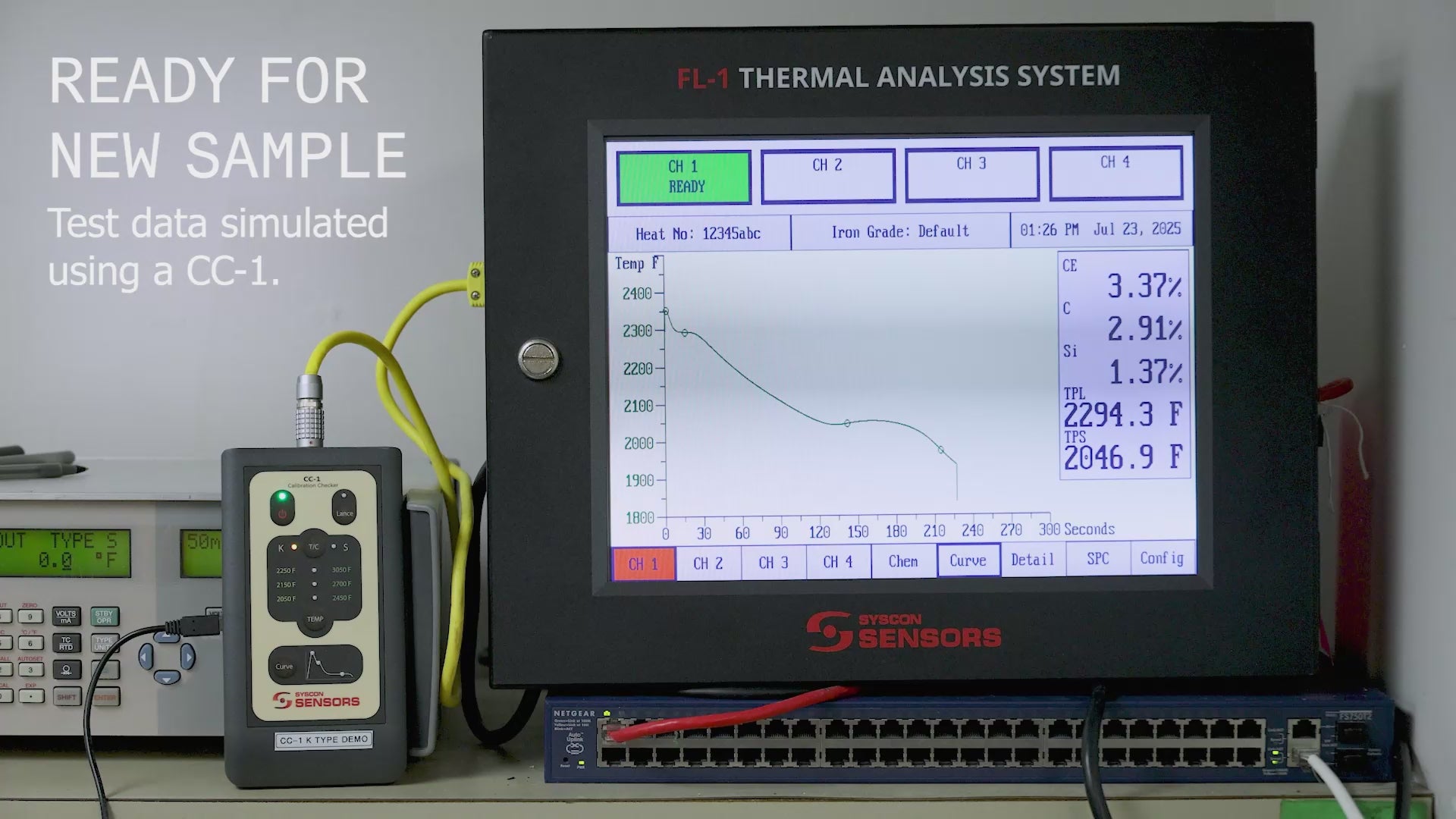

FL-1 Thermal Analysis System



               View Price



























            Get it by Nov 02 – Nov 04

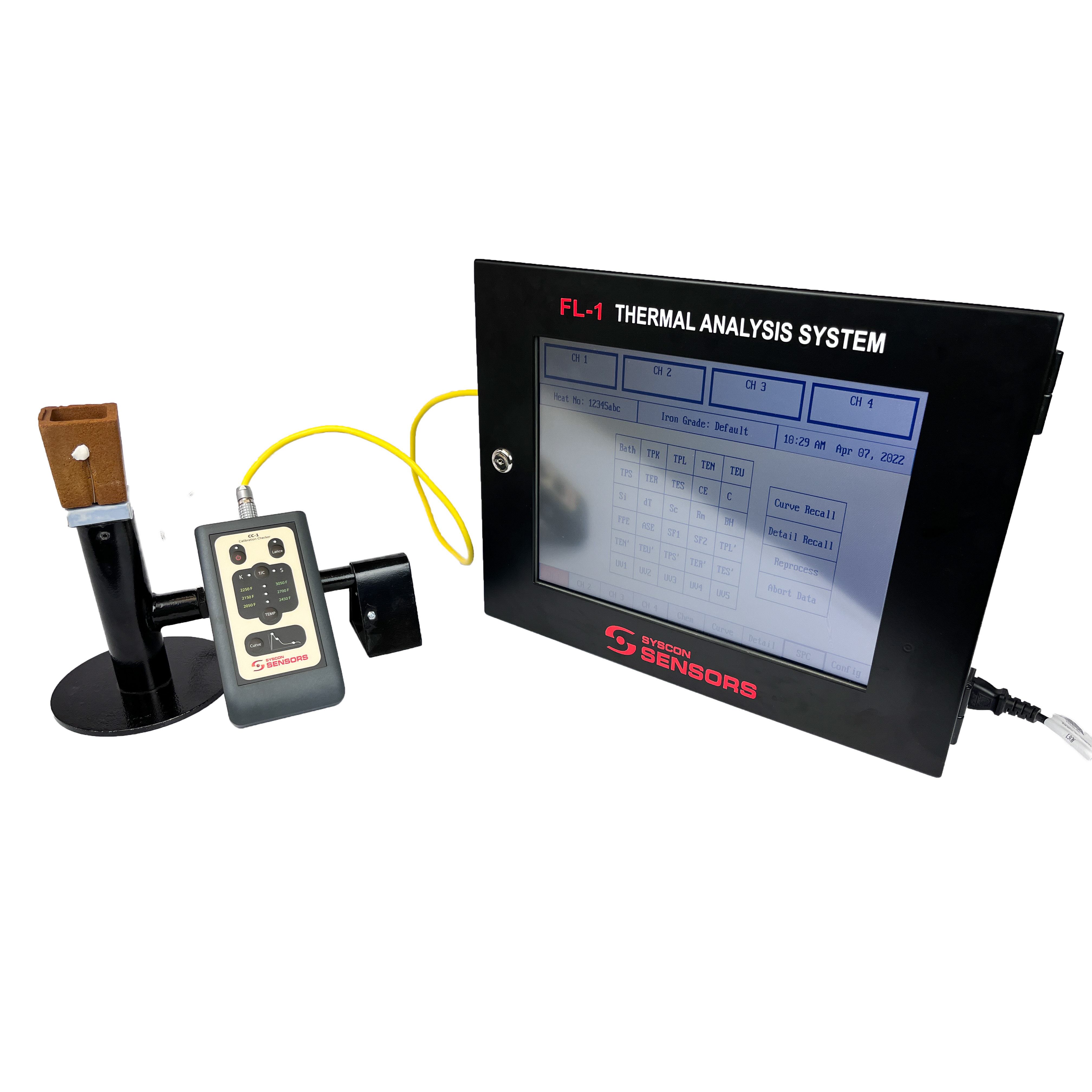

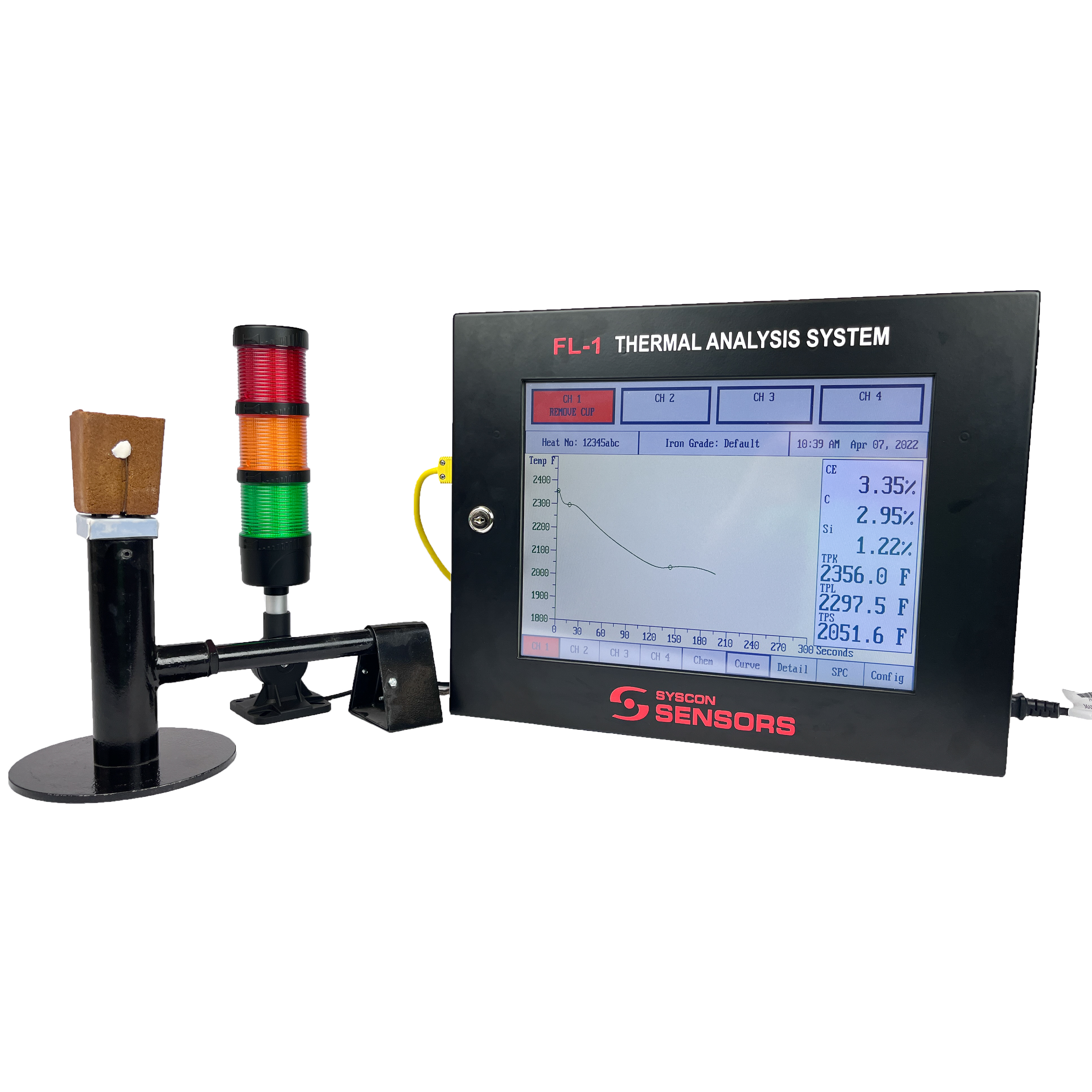

SYSCON Sensors FL-1 is an accurate, easy-to-use, rugged, thermal analysis system designed for foundries. It determines iron chemistry parameters from the cooling curve of molten iron. The FL-1 also measures and stores the molten metal bath temperature.

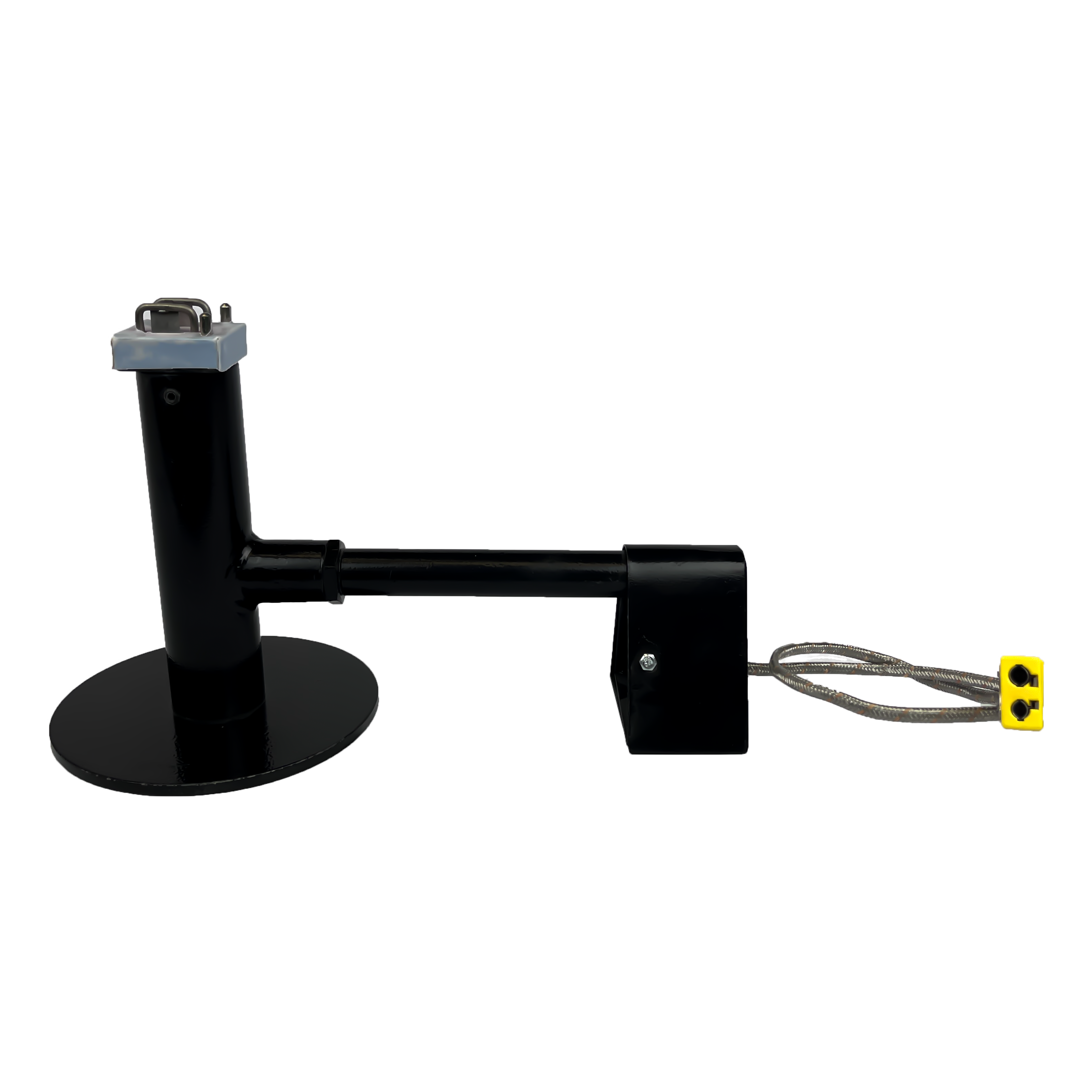

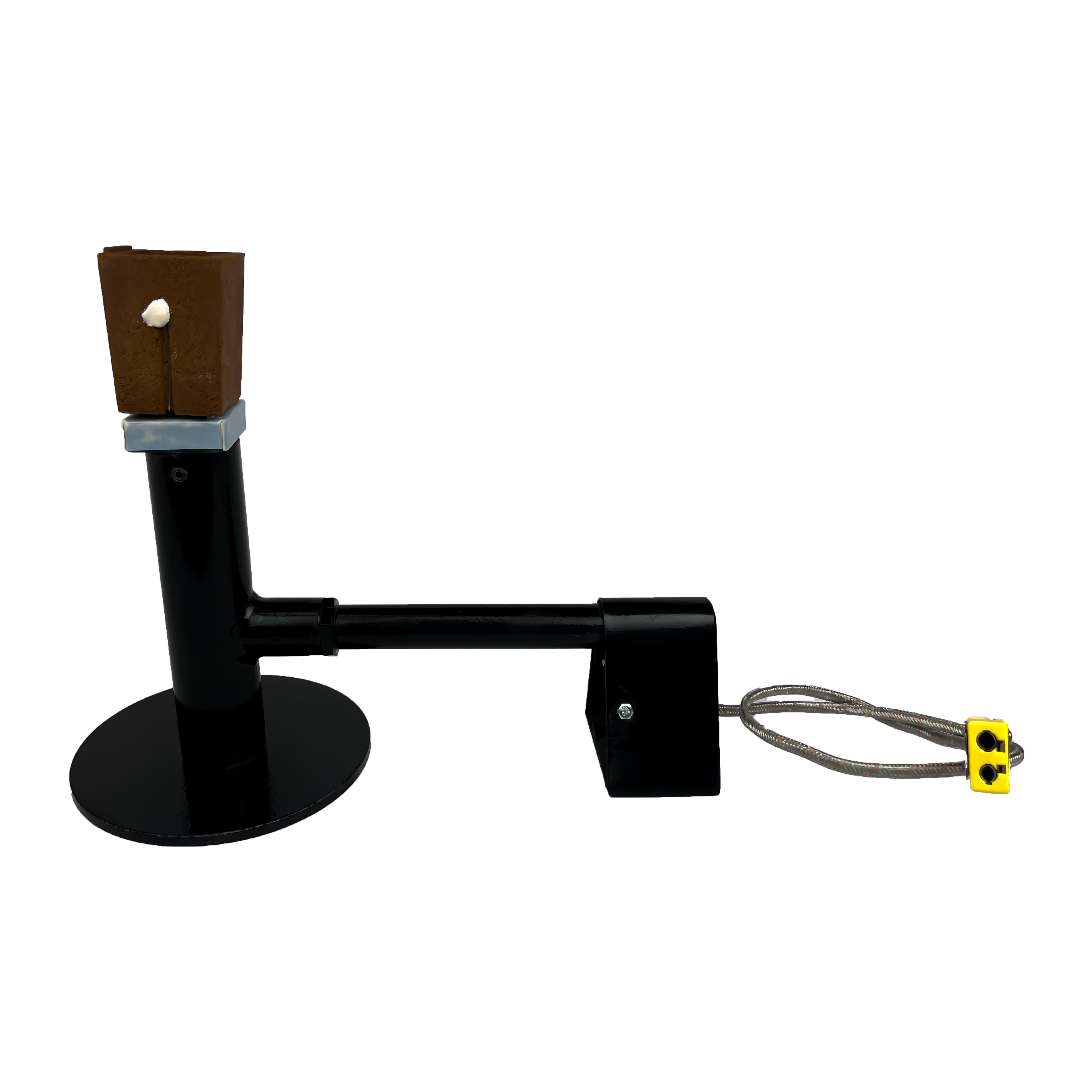

SYSCON designed and built the popular Electro-Nite Quik-Lab and Datacast digital thermal analysis instruments, beginning in 1978. The SYSCON FL-1 builds from that familiar software platform and is ideally suited for use with SYSCON Sensors Sampling Cups, Thermocouple Tips and Lances.

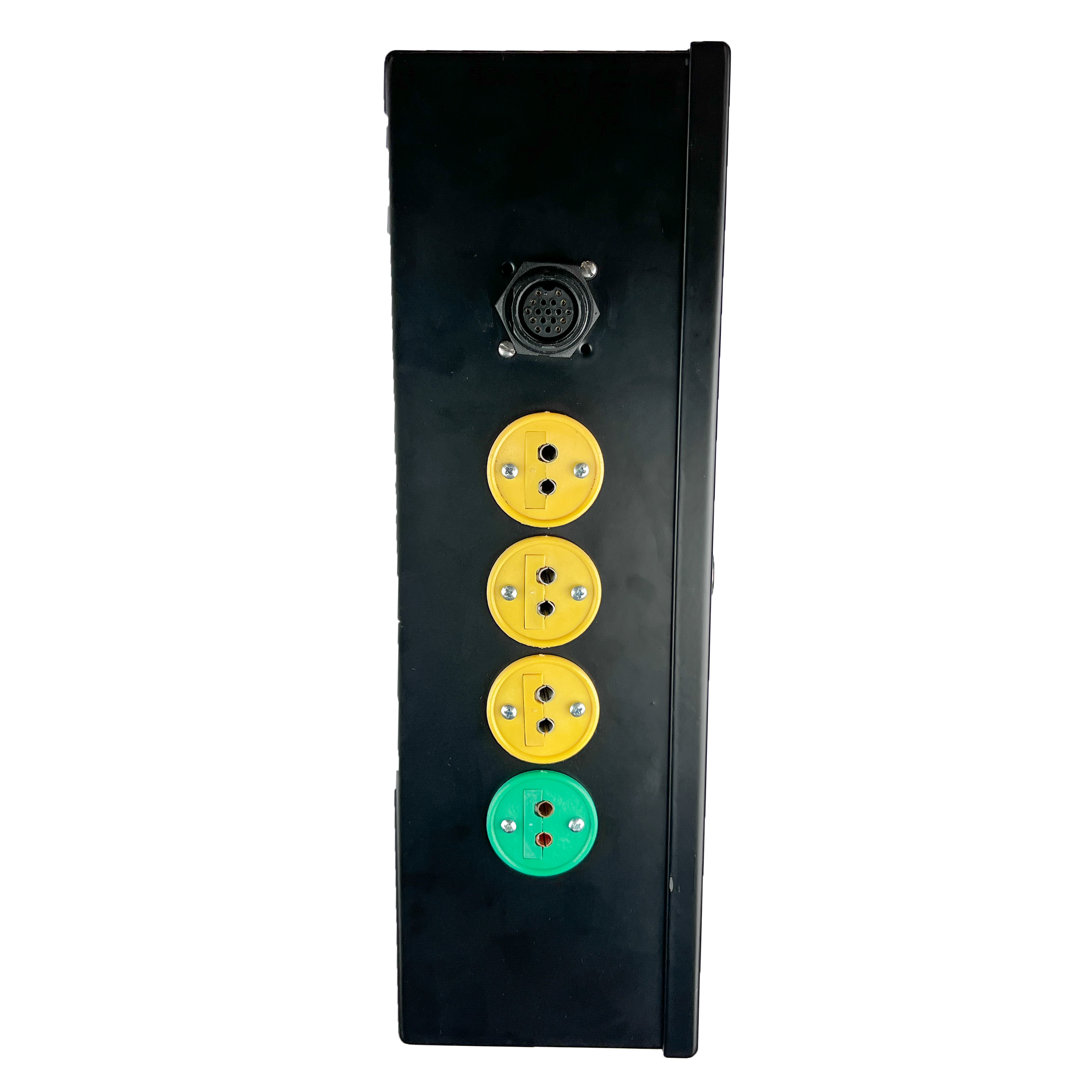

| Input | 4 Thermocouple Inputs |
|---|---|
| Thermocouple Type | 3 Type K and 1 Type S |
| Process Variables Measured | Cooling Curve Temperatures %CE, %C, and %Si Shrinkage Factors Brinell Hardness Tensile Strength User Defined Variables (up to 5) |
| Thermocouple Calibration Standard | IPTS 48 or IPTS 68 |
| InstrumentAccuracy | ±3°F (±2°C) |
| Operating Temperature | 32°F - 122°F (0°C - 50°C) (Non-Condensing) |
| Recommend Measurement Temperature Ranges | Type S: 400°F - 3182°F (205°C - 1750°C) Type K: 400°F - 2462°F (205°C - 1350°C) |
| Storage | 1000 measurements per channel |

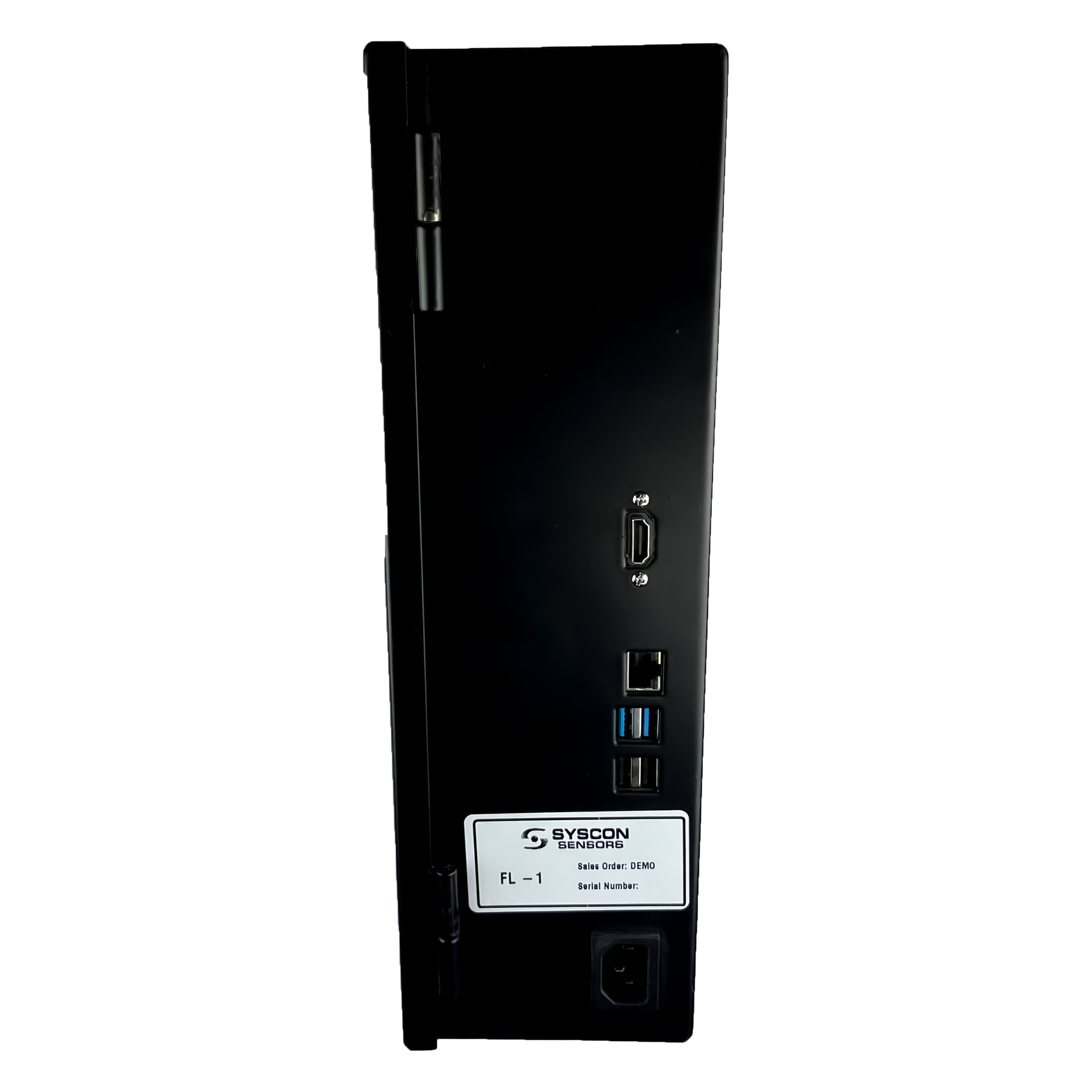

| Connectivity | 1 Ethernet, 4 USB |
| Input Power | 90-265 V AC 50/60 Hz |
| Dimensions | 17 |
| Weight | 22lb (10kg) |
