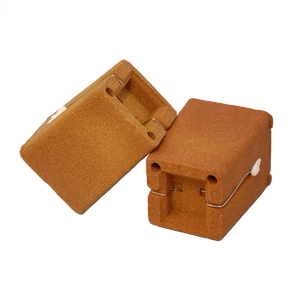

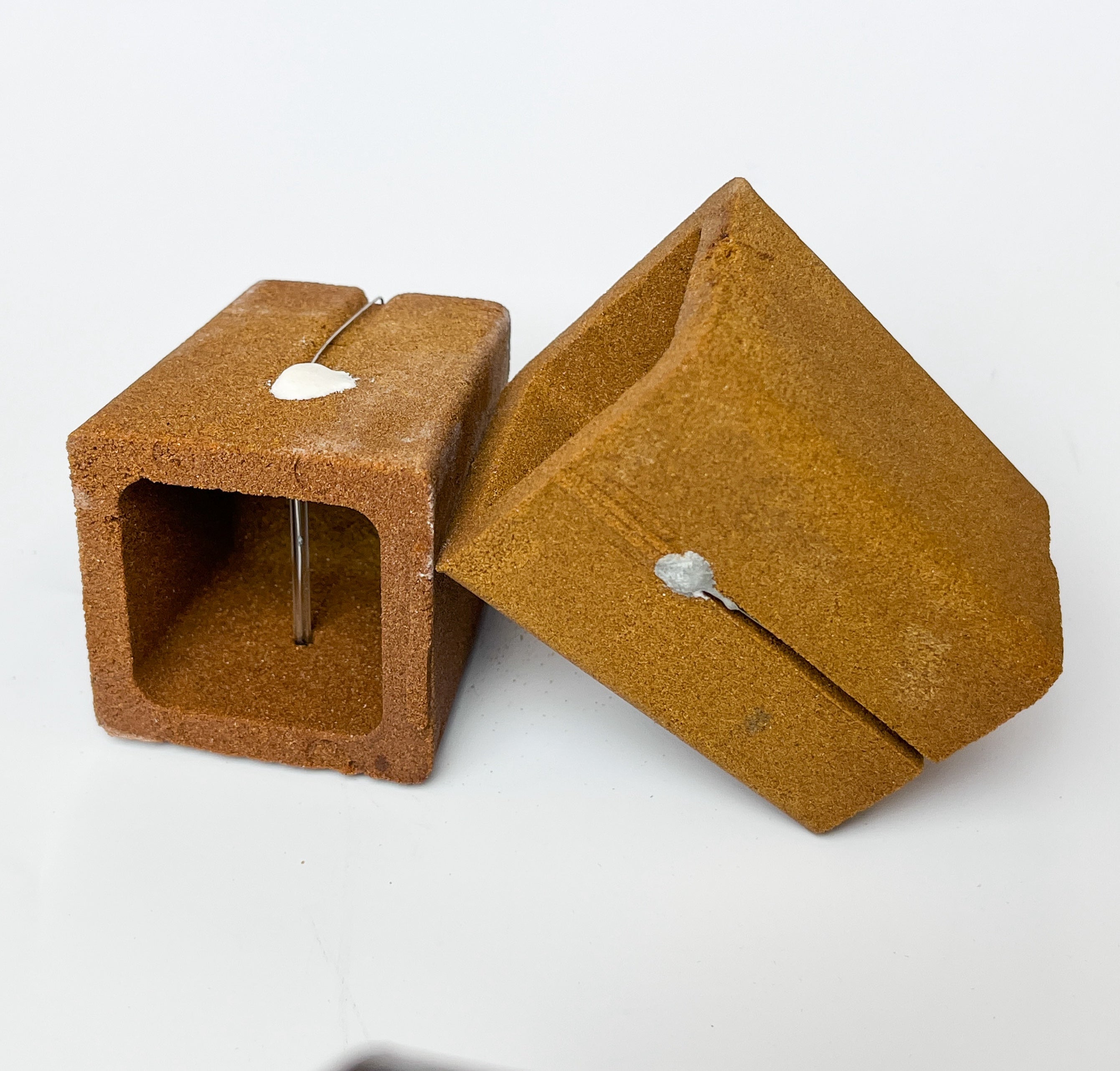

MC Thermal Analysis Cups

Name: MC Thermal Analysis Cups
Brand: SYSCON Sensors

Get it by Nov 03 – Nov 05

Quantity: 100 Cups Per Box

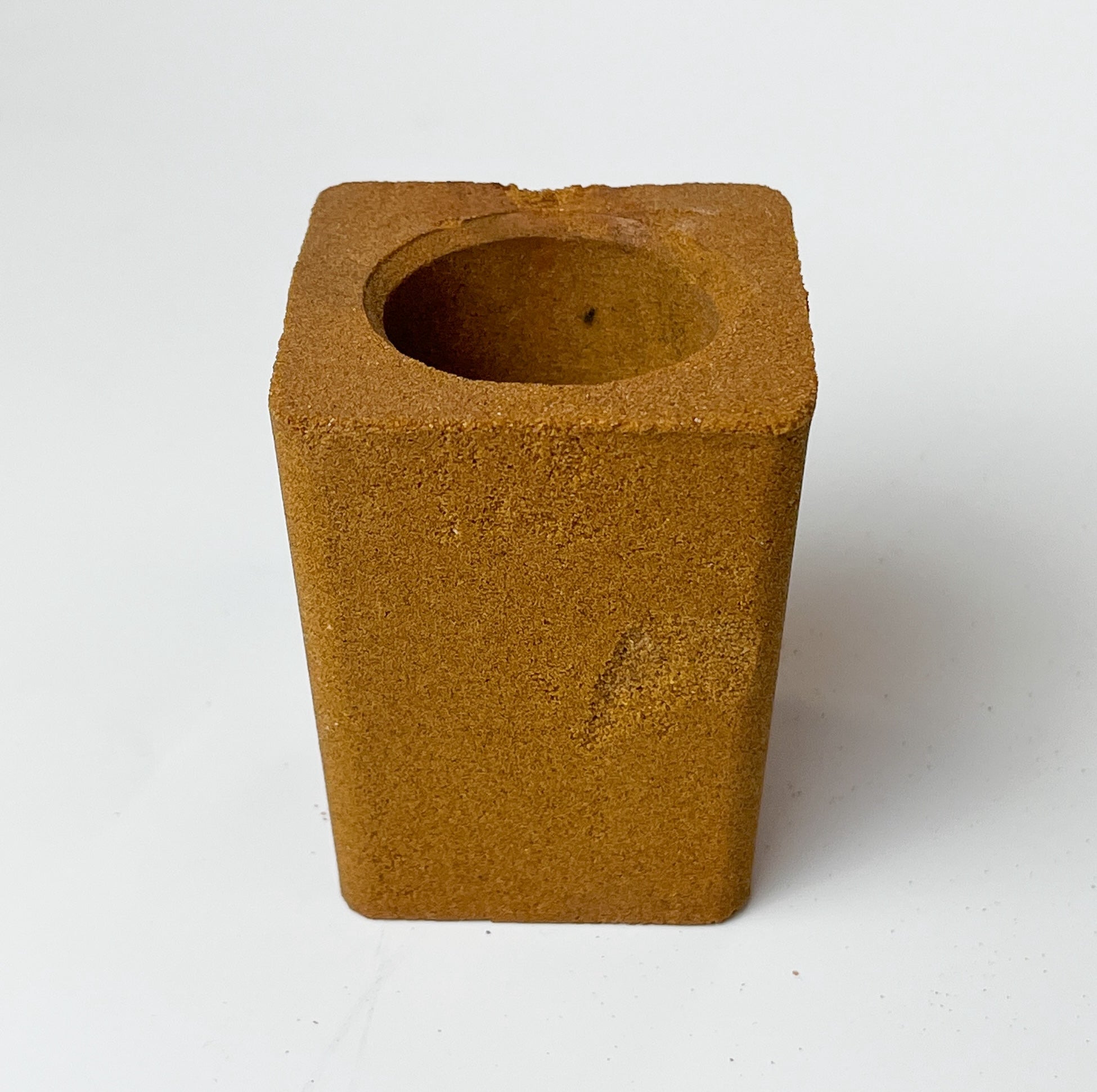

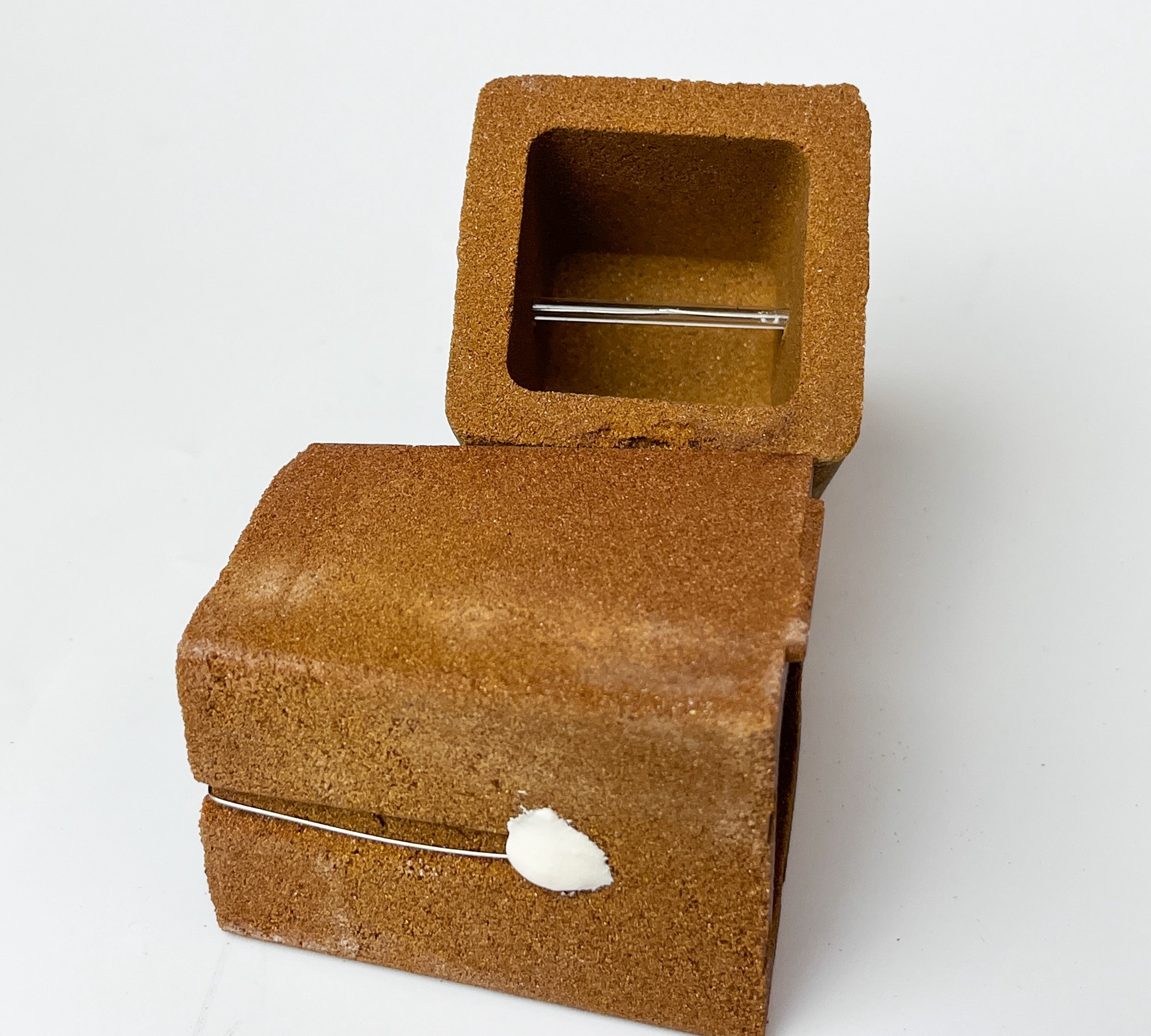

Expendable sampling cups used to determine the thermal arrests in the cooling curve of molten Iron. The shell is manufactured using high grade Silica sand and fitted with a strong, dependable connecting system. The volume of the cups offers the best compromise between measuring time and consistency of the results.

Quick and accurate melt quality determination
Compatible with all thermal analysis systems
Consistent results with historical data due to square shape

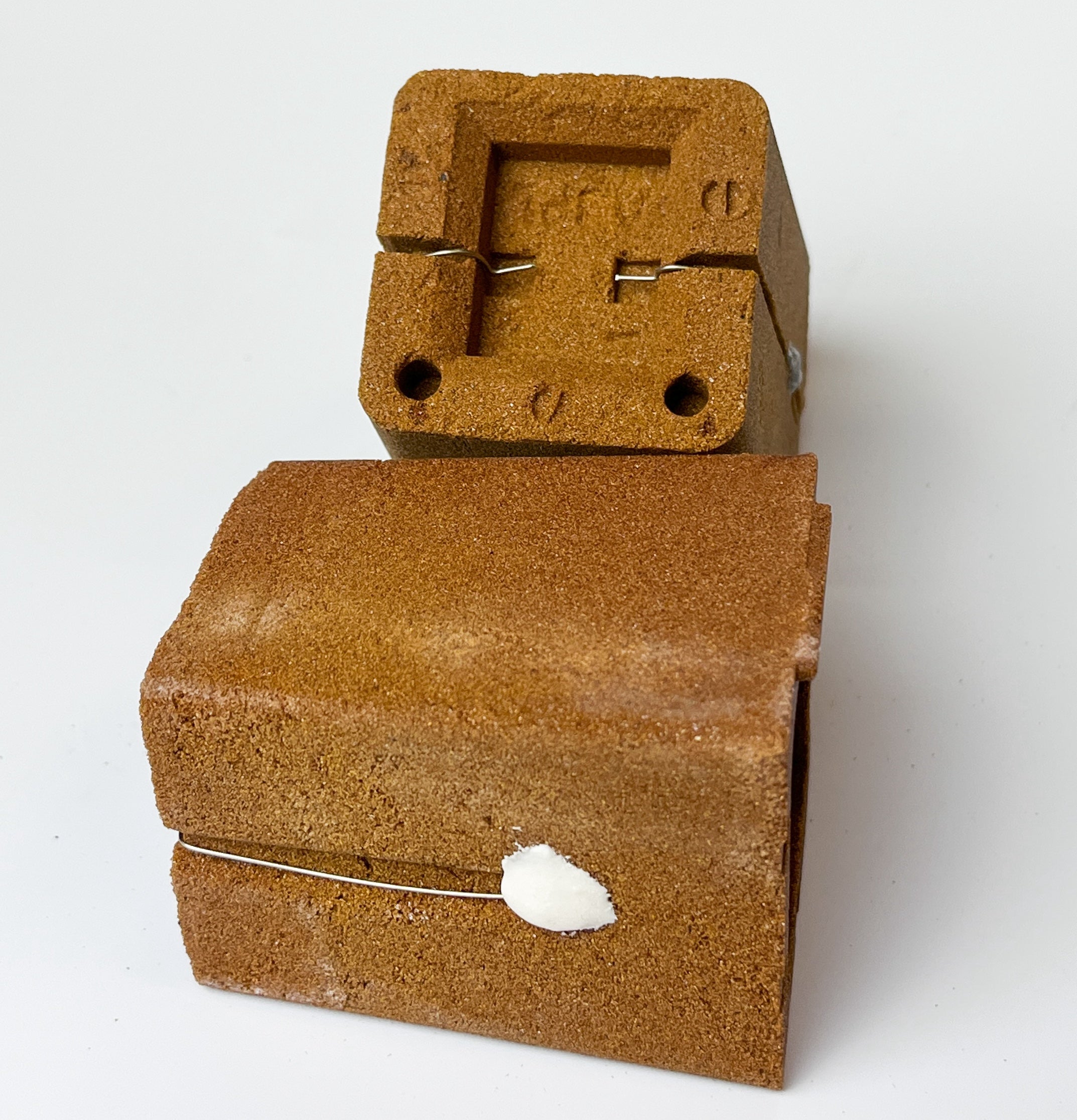

Square shape prevents loose contacts

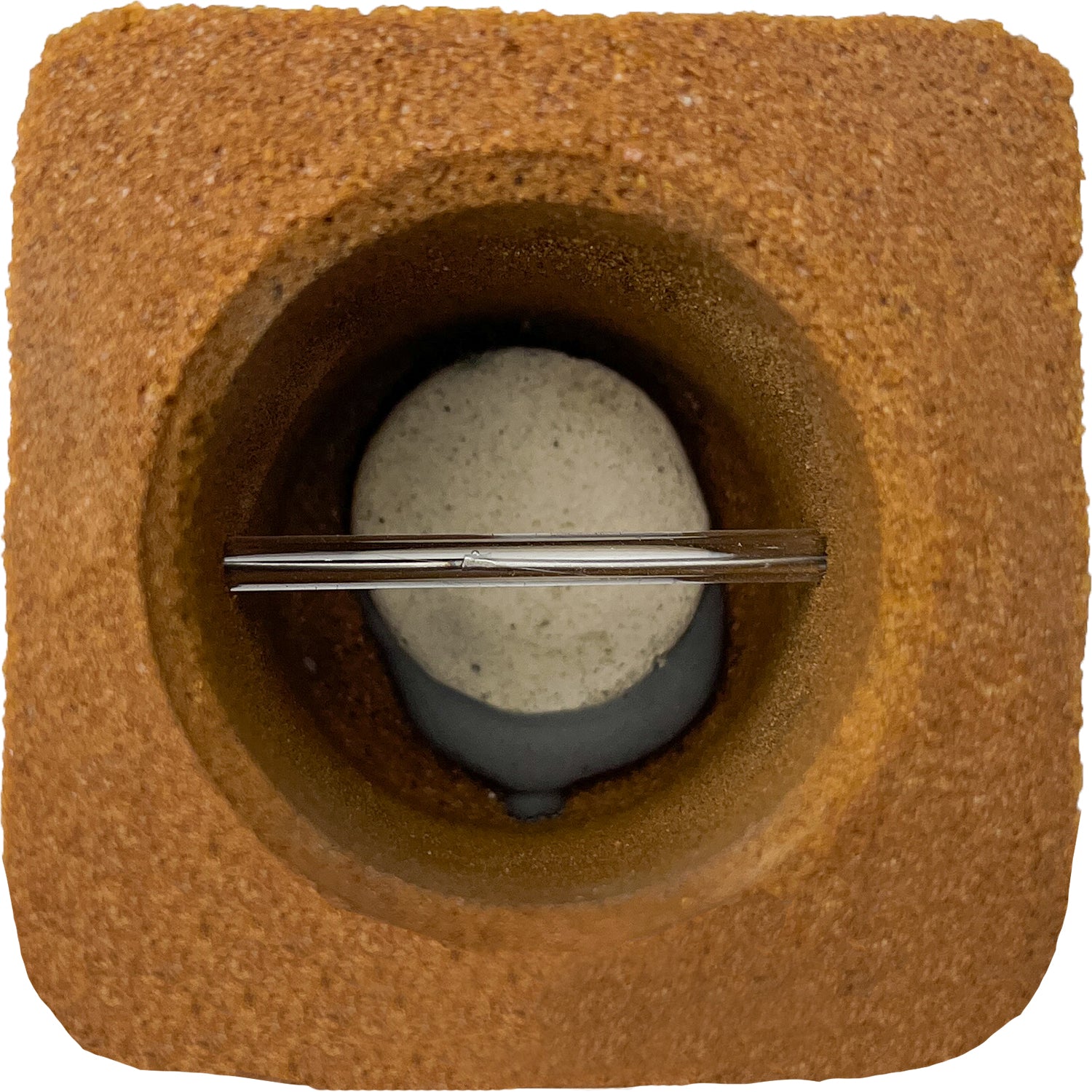

Thermocouple protected by Quartz tube
Manufactured under strict ISO 9001:2000 Quality Standards
Quick Shipping from USA

Thermocouple Type	K
Thermocouple Calibration Standard	IPTS 68
Thermocouple Accuracy	±0.75%
Recommended Measurement Temperature Range	932°F - 2462°F 500°C - 1350°C
Resin Content	2.5%
Mold Sand Grade	AFS 60 - 70
Core Hardness	4.2 MPa
Shelf Life (at least)	12 months minimum
Height	2.05” (52mm)
Width	2.00” (51mm)
Weight	4-4.4 oz. (115 - 125g)
Handling & Storage	Handle with care and store in a dry environment

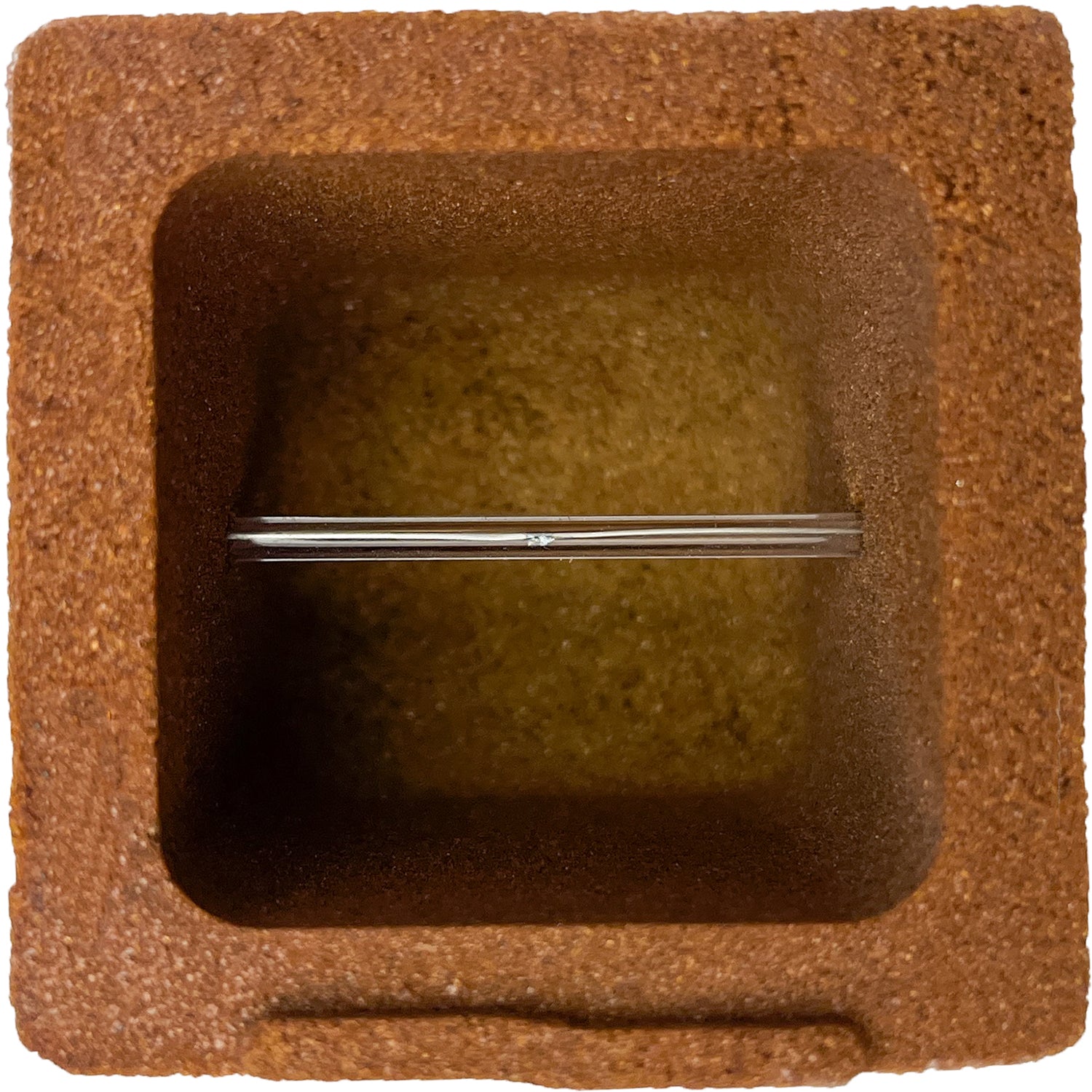

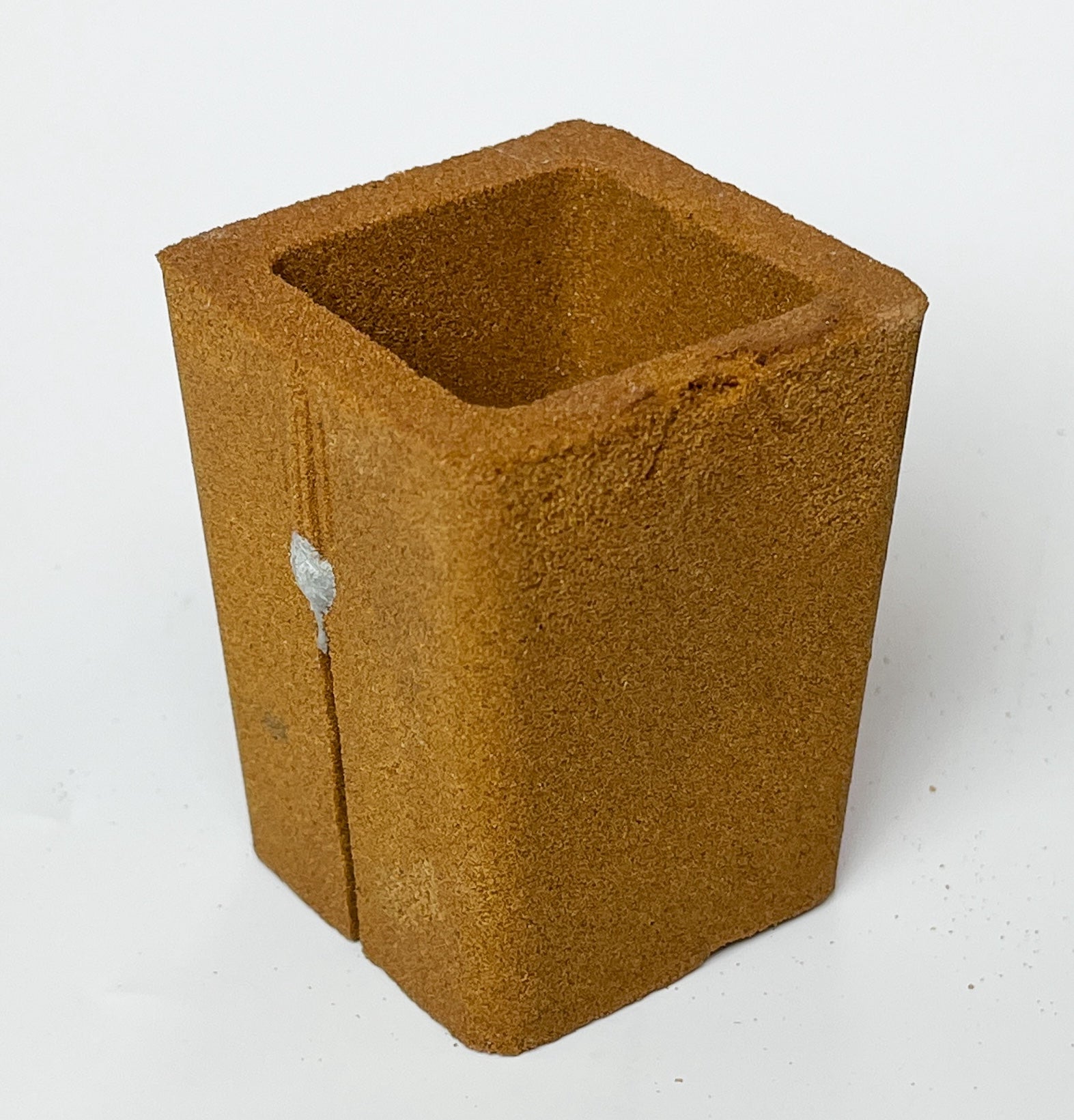

MC	Thermal Analysis Square Cup w/o Tellurium
MC-TE	Thermal Analysis Square Cup w Tellurium

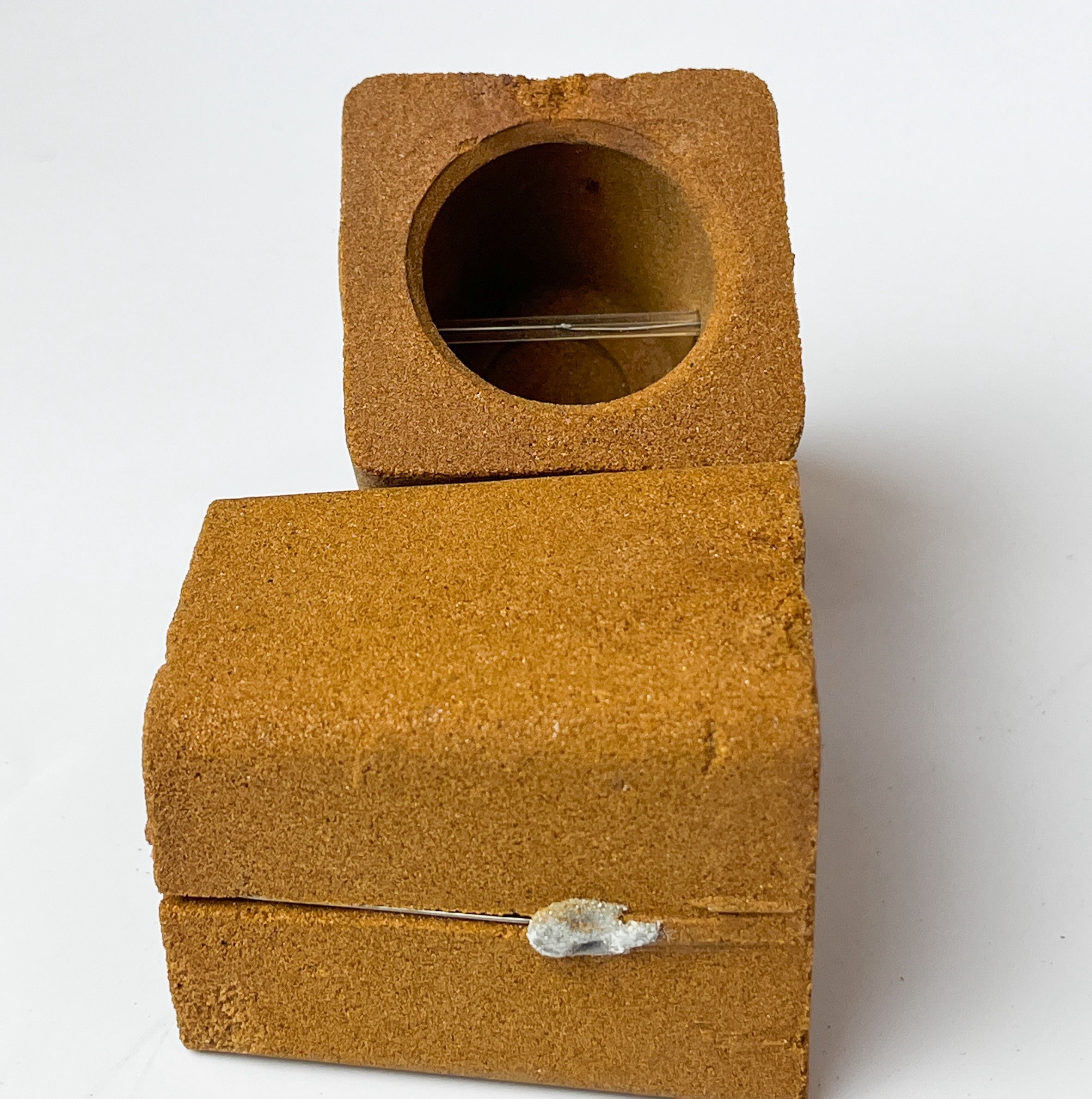

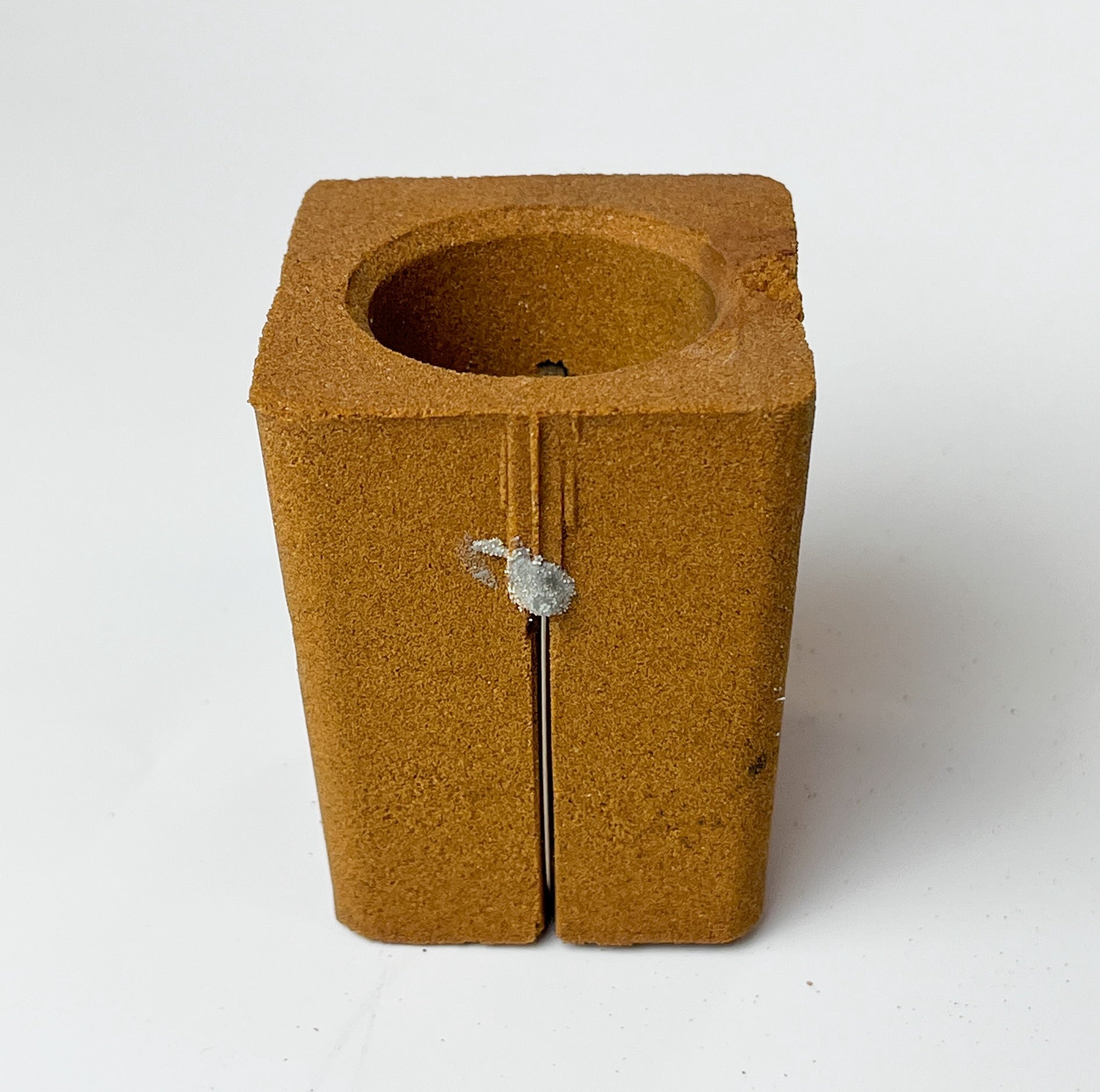

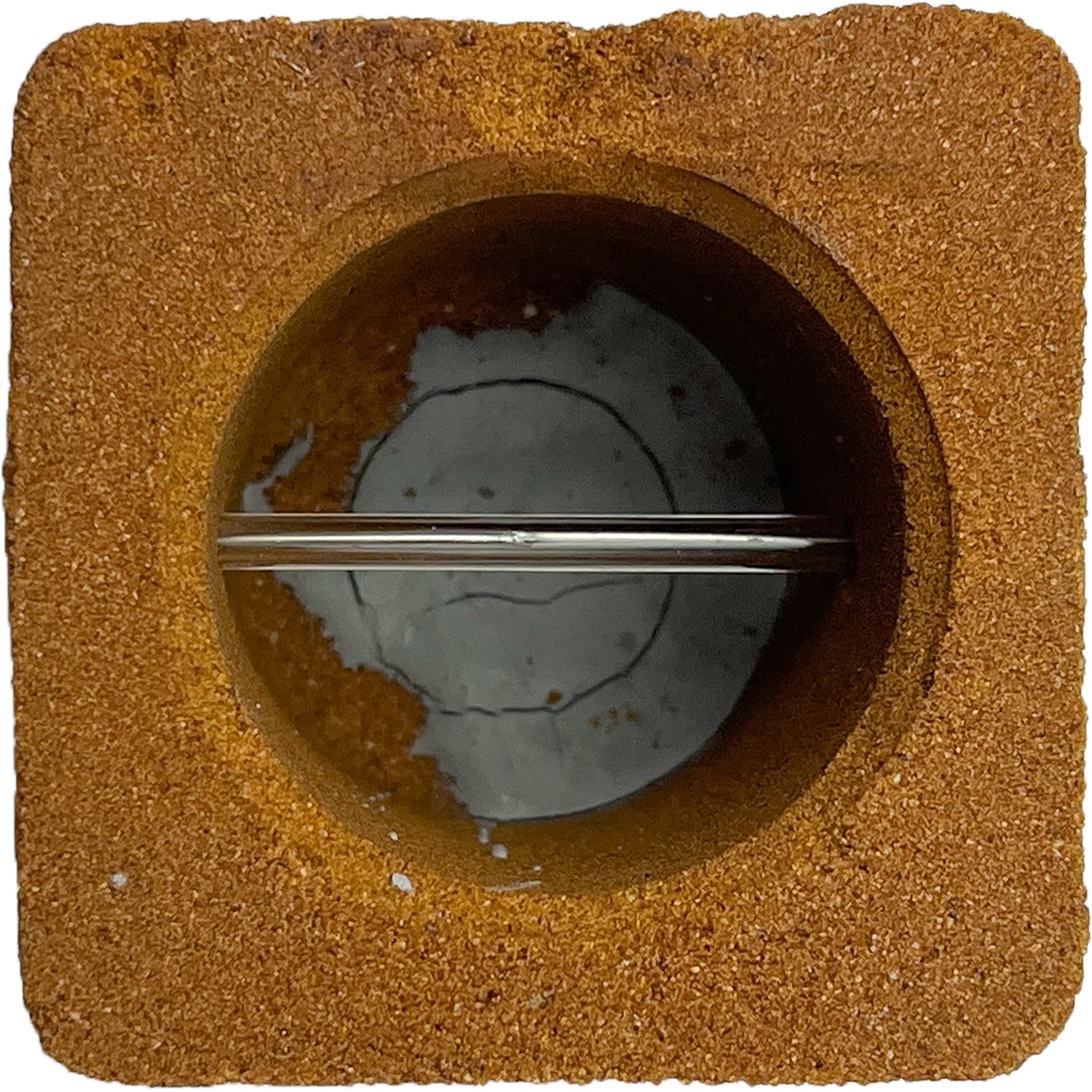

MC-R	Thermal Analysis Round Cup w/o Tellurium

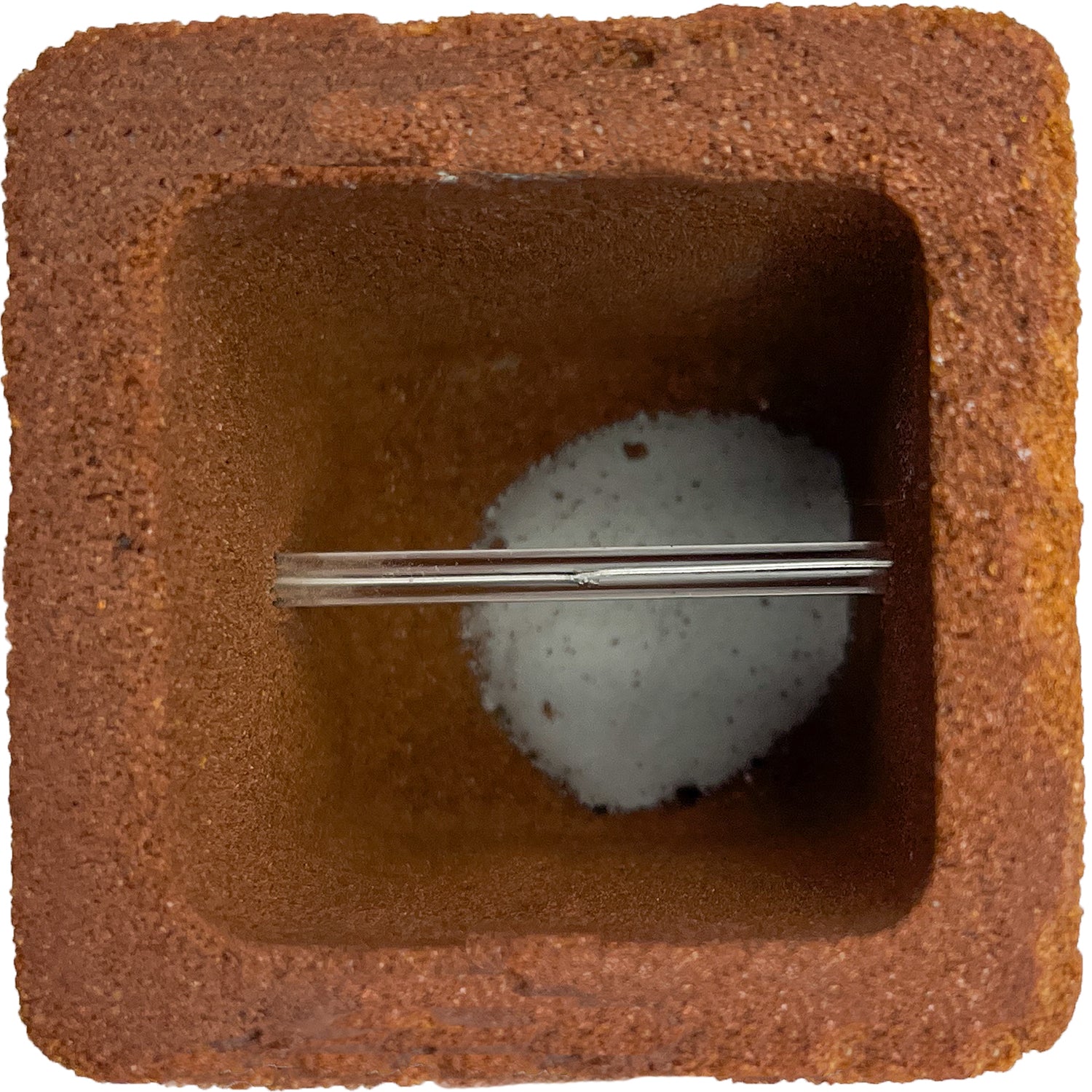

MC-R-TE	Thermal Analysis Round Cup w/ Tellurium
MC-R-TE-S	Thermal Analysis Round Cup w/ Tellurium + Sulphur
