Products

Molten Metal Temperature Sensors and Analysis Instruments

Based on decades of experience and manufactured with high quality materials, our instruments and sensors are competitively priced and designed to simplify day-to-day activities for metallurgists, melt technicians, and plant managers. Browse our products to find the best fit for your needs.

molten-metal
TS-1

TS-1 Handheld Pyrometer

The TS-1 is sturdy, accurate, easy to use, portable and dependable, making it the ideal molten metal temperature measuring instrument for ferrous foundries and steel plants. Does it look familiar? The TS-1 is the successor to the popular DT-250/260/270 pyrometers we created for a major supplier in the industry. Compatible with many standard thermocouple tips, it can be used with molten Steel, Bronze, Cast Iron, Aluminum Alloys, Copper, Gold, Brass and Silver. Peak temperature is typically detected and captured in 3-5 seconds.

WM-1

WM-1 Wall-Mount Pyrometer

The WM-1 is sturdy, accurate, easy to use, and dependable, making it the ideal molten metal temperature measuring instrument for ferrous foundries and steel plants. The WM-1 is a wall-mountable version of our popular TS-1 handheld pyrometer and operates the same way. When fitted with a separate hand-held lance and appropriate thermocouple tip, it can be used with molten Steel, Bronze, Cast Iron, Aluminum Alloys, Copper, Gold, Brass and Silver. Peak temperature is typically detected and captured in just 3-5 seconds.

FL-1

FL-1 Thermal Analysis System

The FL-1 is an accurate, easy-to-use, reliable thermal analysis system designed to provide iron chemistry analysis for foundries. A descendent of the popular QuiK-Lab and Datacast digital thermal analysis instruments which were designed by us and sold under the Electro-Nite name, the SYSCON FL-1 runs the same familiar software and generates the same reliable results as those best selling instruments. Pair it with our Metacup sampling cups and stand for a complete package.

CC-1

CC-1 Calibration Checker

SYSCON Sensors CC-1 provides quick and accurate calibration checking for Pyrometers and Lab analyzers. Similar to the familiar Checkmate devices, the CC-1 generates cold-end compensated voltages corresponding to three standard temperatures and includes lance resistance check functionality. A standard curve can be generated to plot on an FL-1, QuiK-Lab, Datacast, or similar cooling curve lab analyzer.

MD and BMD

MD Multi-Dip Thermocouple Tips

SYSCON Sensors MD Multi-Dip Thermocouple Tip is a high precision, non-splash probe, ideal for small furnaces and ladles in slag-free metal. It provides quick and accurate temperature measurements using a thermocouple tip protected by a quartz tube. Unlike other expendable thermocouples, additional insulation is not needed since only the quartz tube is dipped in molten metal. An optional heat shield is available to extend the life of the contact black. The MD is compatible with the SYSCON Sensors TS-1 Handheld Digital Pyrometer or any other industry standard unit.

MultiUse_Thermo

MUL Multi-Use Thermocouples

SYSCON Sensors MUL is an expendable, multi-use, non-splash, and high precision thermocouple probe. With the thermocouple tip protected by ceramic fiber and foil insulation, it is suited for larger furnaces and a wide range of molten metals - Iron, Steel, Copper, Bronze, and Aluminum. The MUL tip does not need any special accessories. It fits securely on SYSCON Sensors TS-1 Handheld Digital Pyrometer.

SULs

SUL Single-Use Thermocouples

SYSCON Sensors SUL is an expendable, single-use, and high precision thermocouple tip. SULs are suited for a wide range of molten metals - Iron, Steel, Copper, Bronze, and Aluminum. The SUL tip does not need any special accessories and fits snugly on a SYSCON Sensors TS-1 Handheld, WM-1 Wall-Mount, or any other standard pyrometer lance. The small-diameter tube is designed for easy penetration in furnaces or ladles.

type-k tip

MD-K Multi-Dip Type-K Thermocouple

SYSCON Sensors MD-K Multi-Dip Type-K thermocouple is an accurate, non-splash probe, ideal for all furnaces and ladles when melting lower temperature metals and alloys. The Type-K tip is very long lasting – remaining reliable over hundreds of dips. The MD-K is available in various lengths and can be securely mounted on lances used with the SYSCON Sensors TS-1 Handheld or WM-1 Wall-Mount Digital Pyrometers.

metacup stacked

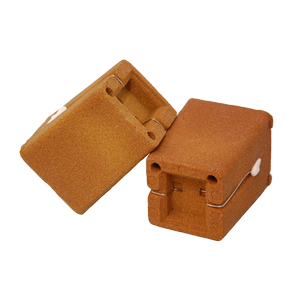

Sampling Cups

SYSCON Sensors high precision and expendable sampling cups, with or without Tellurium are used with an FL-1 or similar thermal analysis system to determine the Carbon Equivalent, Carbon, Silicon and other chemistry parameters in molten Iron.

Star_Steel_Samplers

Steel Samplers

SYSCON Sensors Immersion Star Steel Samplers are designed for the Iron and Steel industry to aid in the secondary refining process by obtaining quick, solid, and homogenous samples. They are ideal for taking samples from Electric Arc Furnace (EAF), Basic Oxygen Furnace (BOF), tundish, ladle, and other stations.
