MXT Non-Splash Thermocouples
Get it by Nov 03 – Nov 05
Quantity: 50 or 100 Per Box

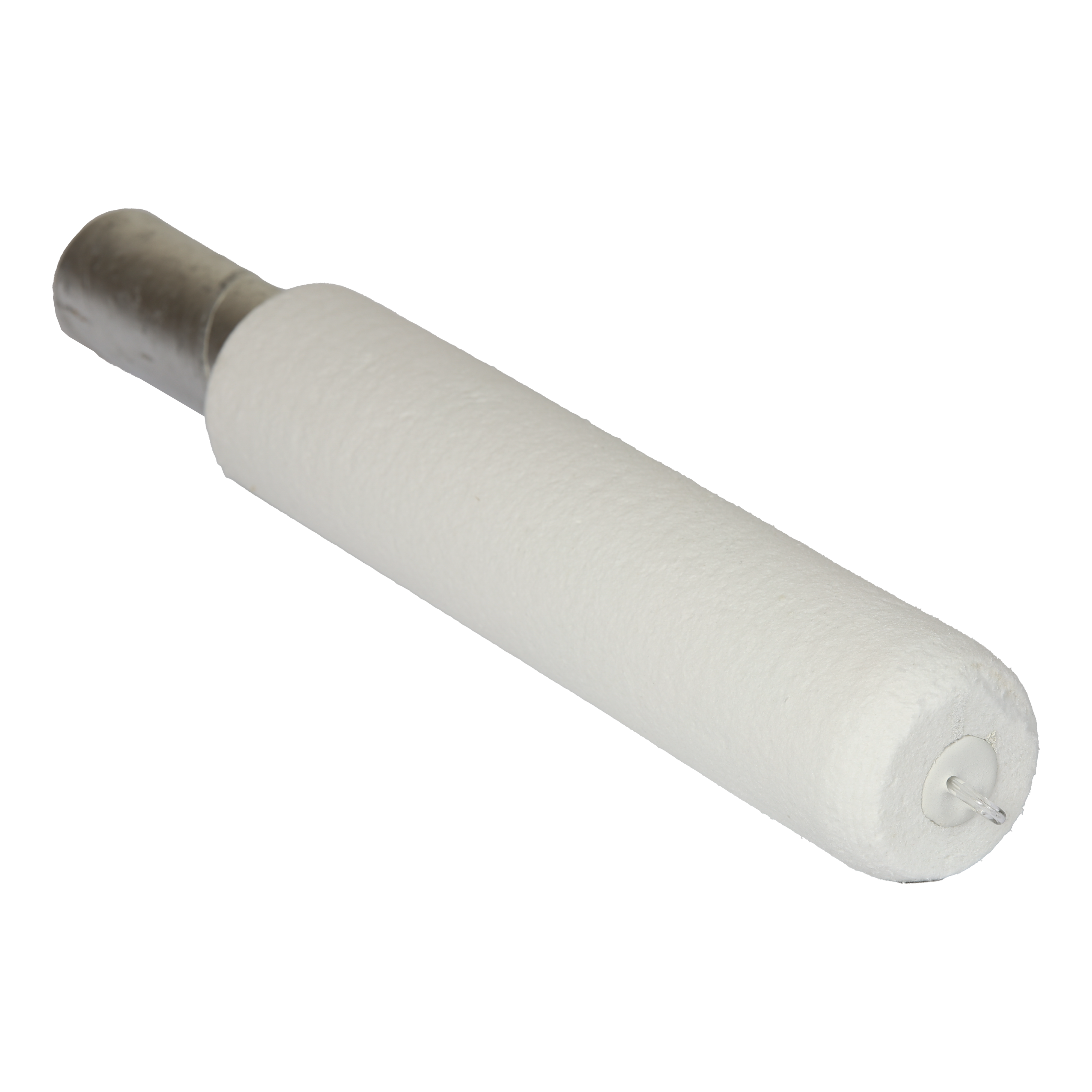

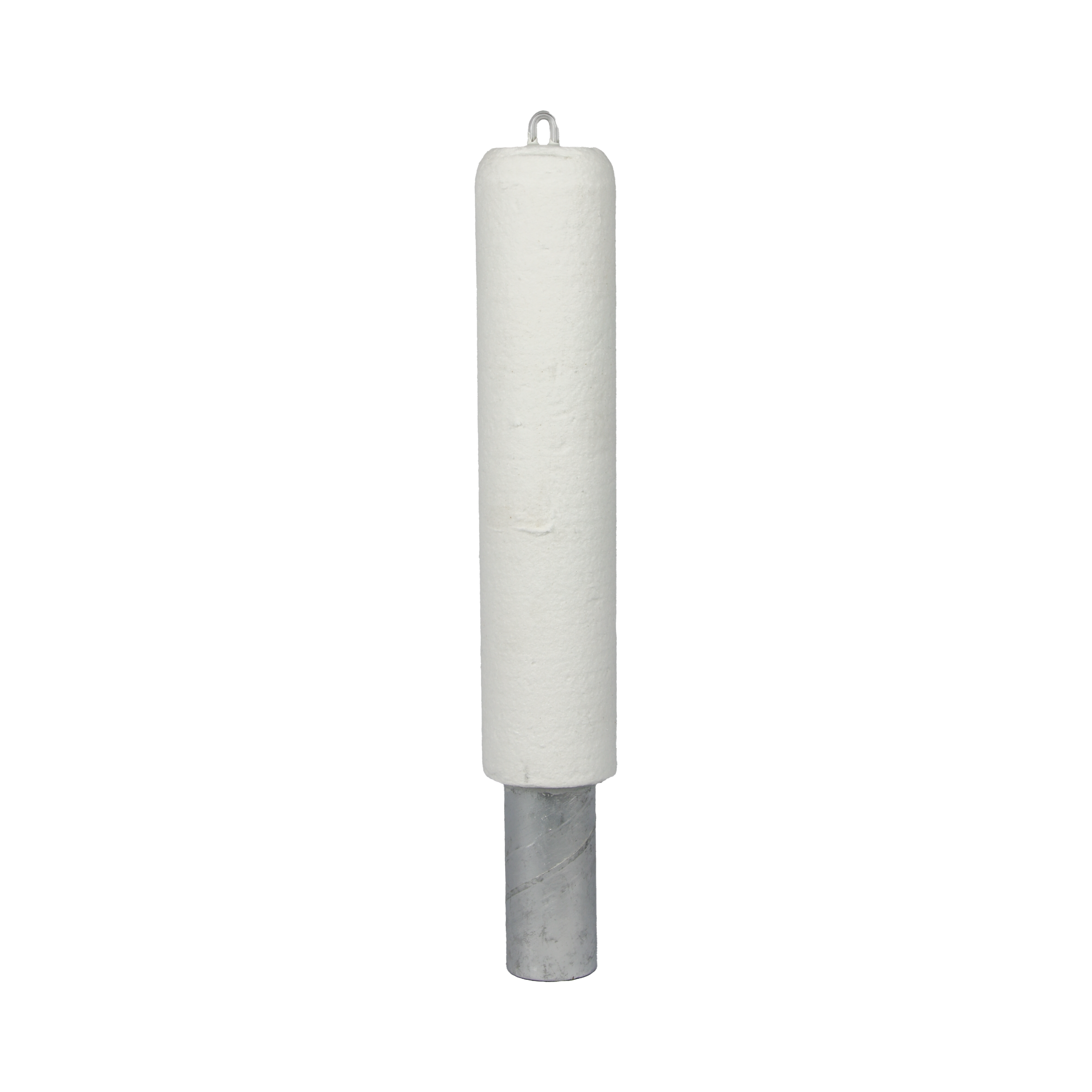

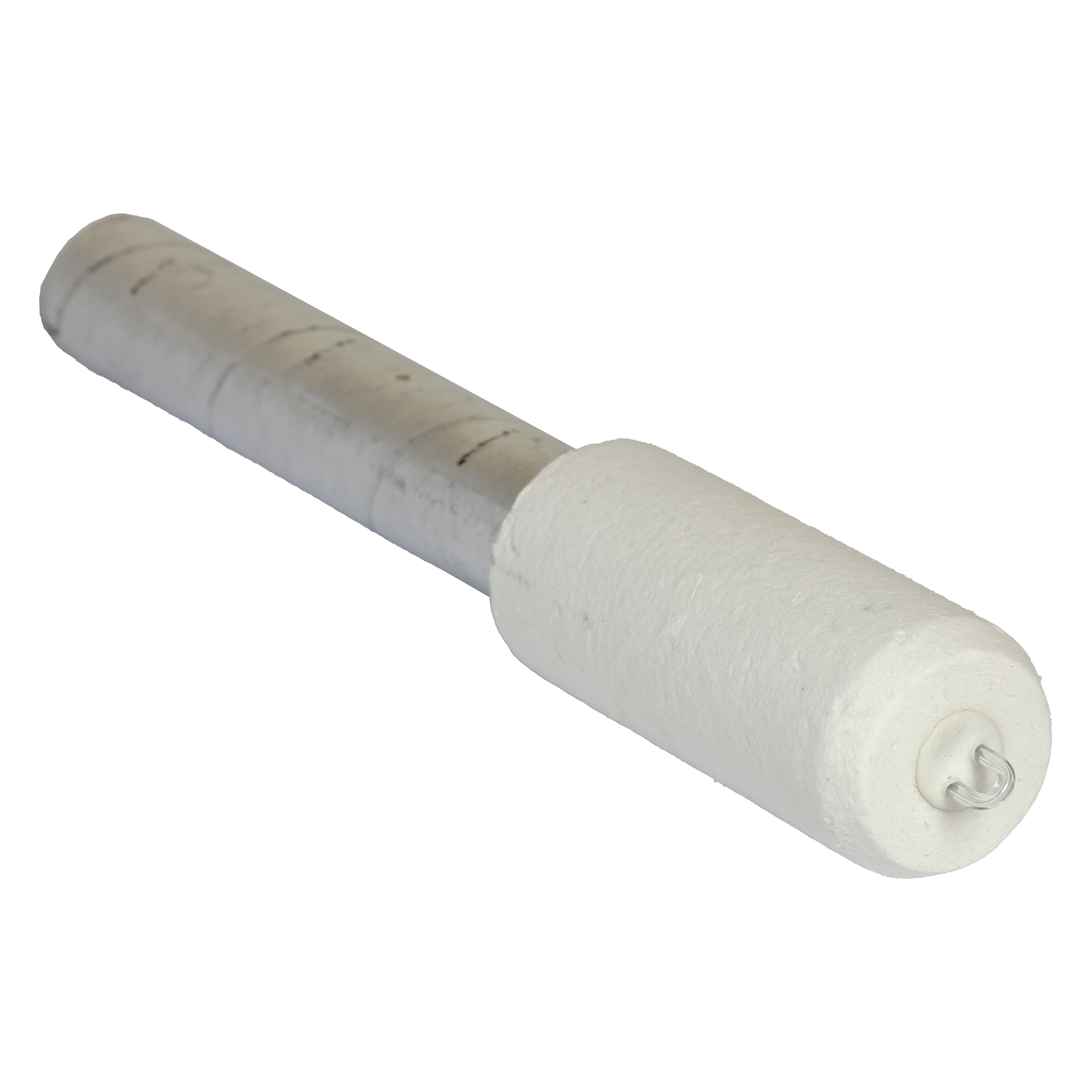

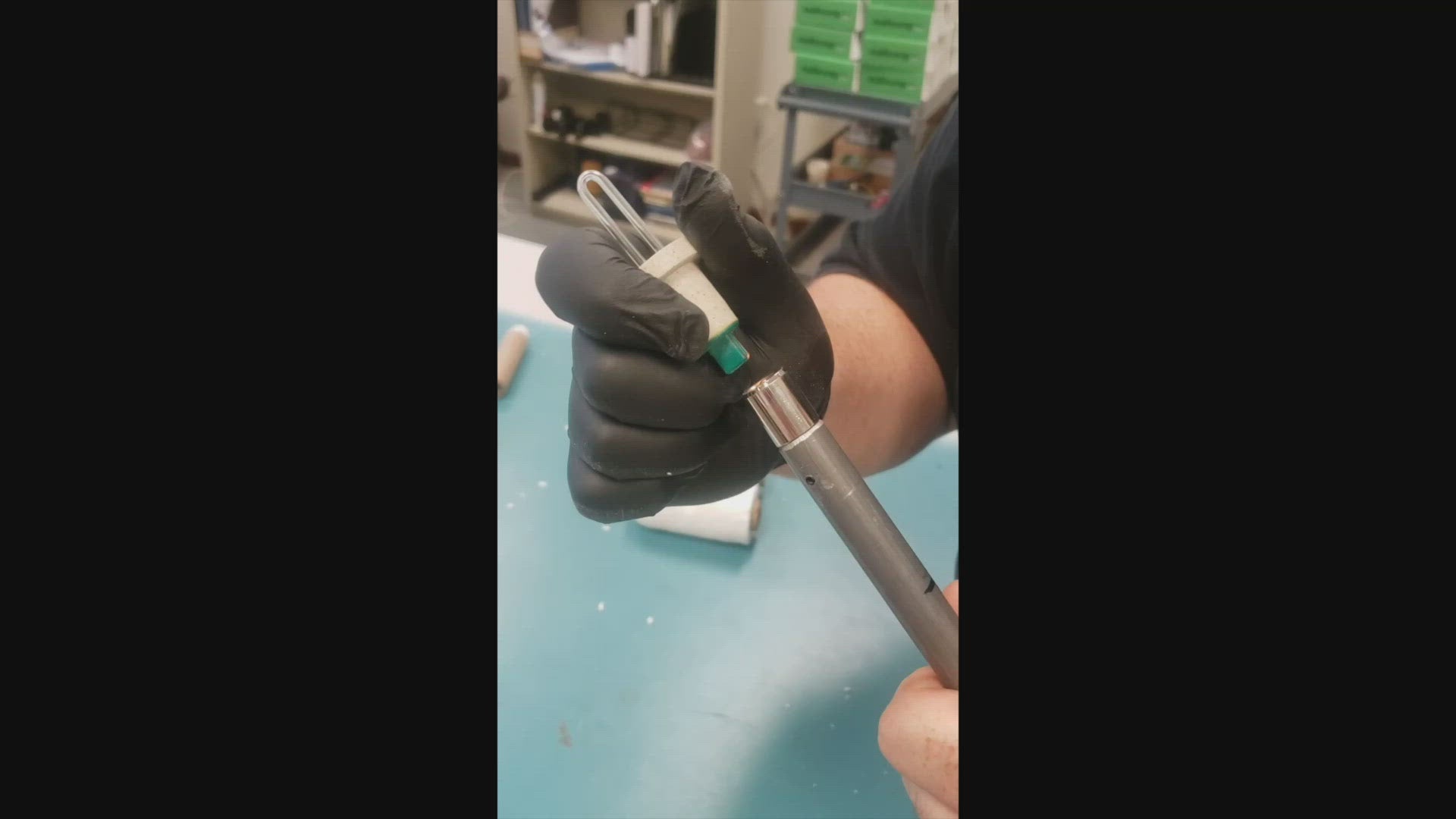

SYSCON Sensors MXT is an expendable, multi-use, non-splash and high precision thermocouple tip. It is suited for a wide range of molten metals - Iron, Steel, Copper, Bronze, and Aluminum. The MXT tip fits securely on a SYSCON Sensors TS-1 Handheld Digital Pyrometer and other industry standard equipment.

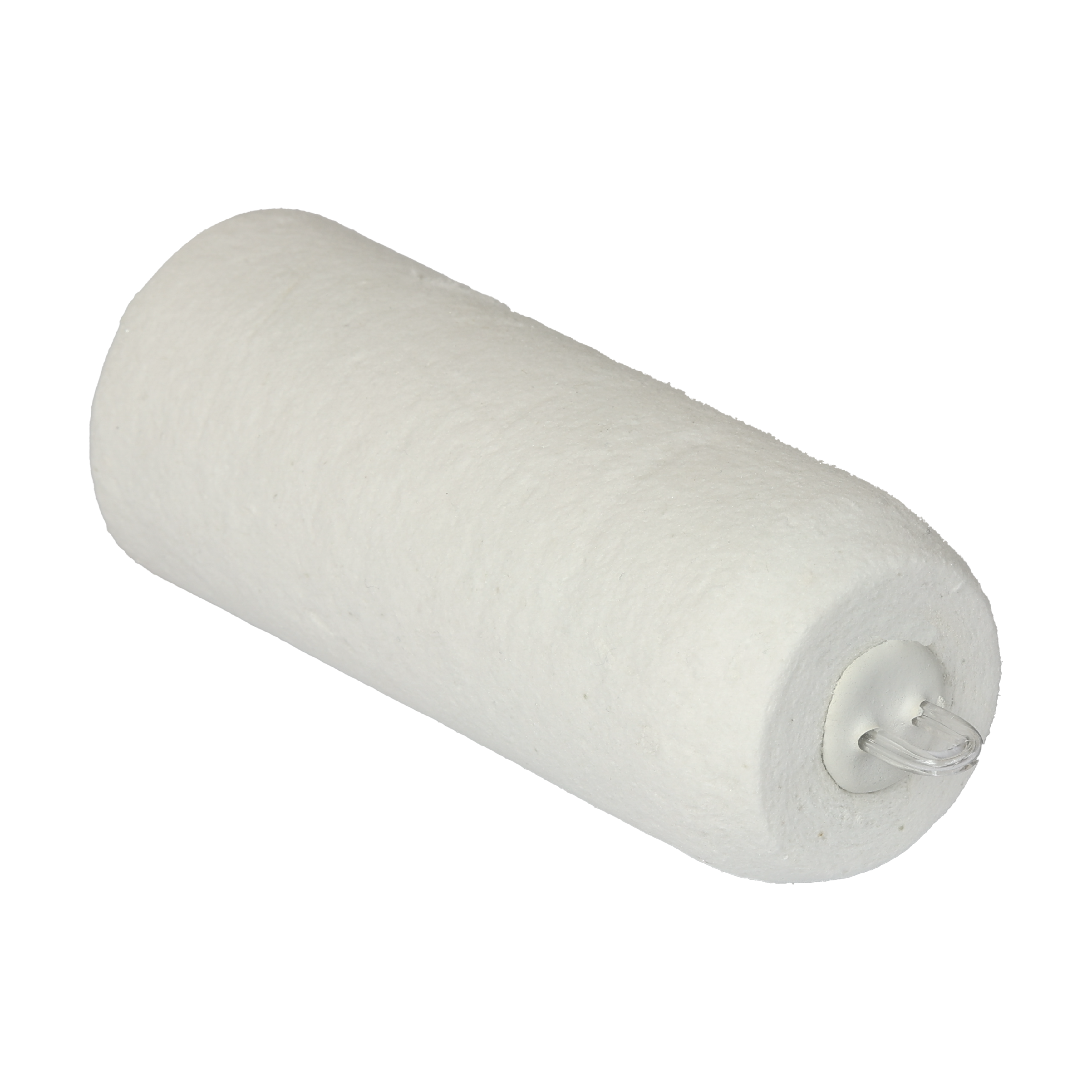

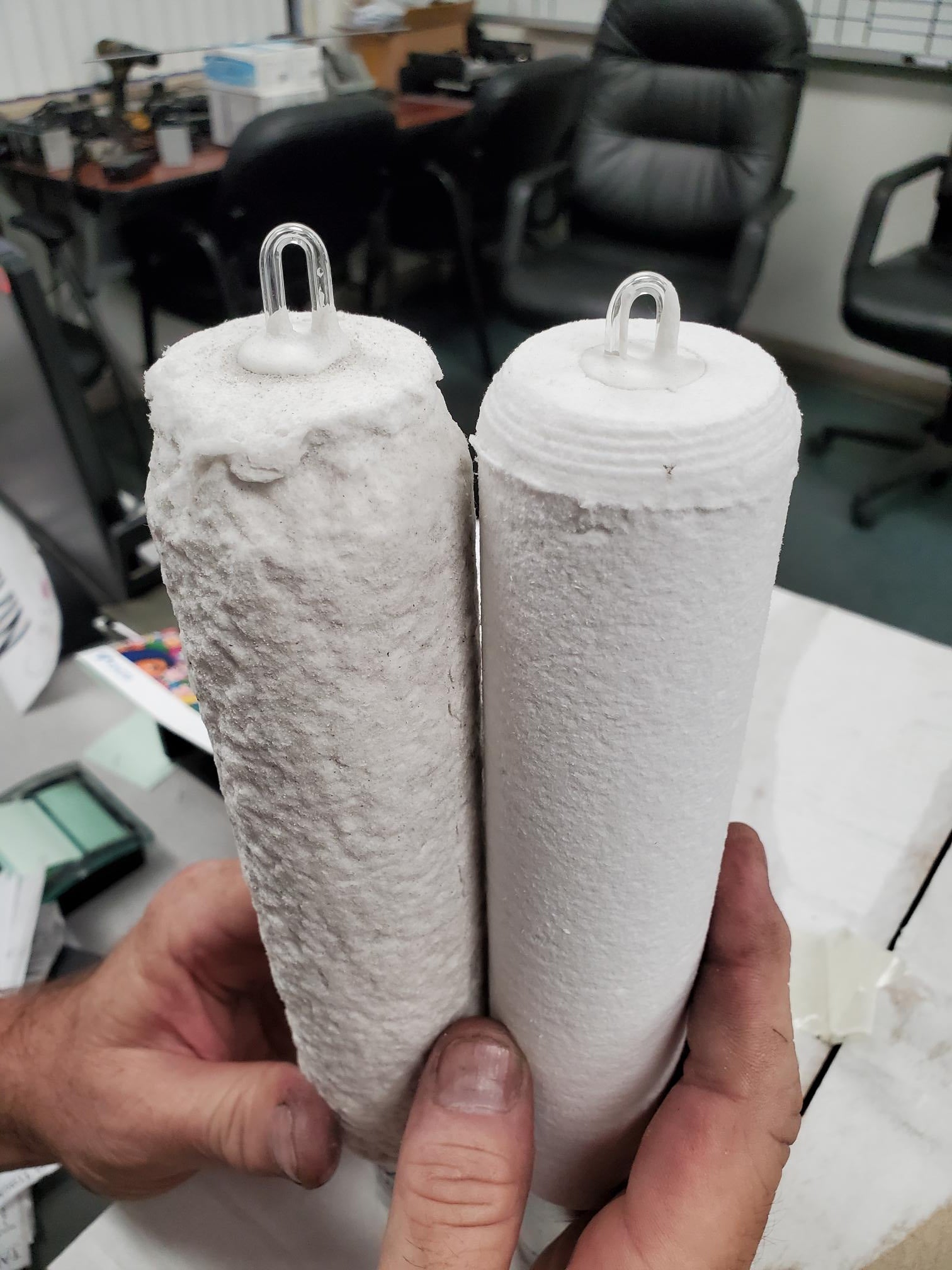

The specially formulated, ceramic, non-splash sleeve is designed to eliminate splashing and resist slag adhesion, extending the number of dips. The aluminum foil on the cardboard tube adds extra protection and enables more readings per MXT, reducing overall cost. The unique combination of ceramic fiber, aluminum foil, and the high-density paper tube keeps the contact block and lead wire cooler.
| Thermocouple Type | Type S, B |
|---|---|
| Thermocouple Accuracy | ±0.25% |
| Calibration Standard | IPTS 68 |
| Type S, R temp ranges | Type S,R: 400°F - 3182°F (205°C - 1750°C) Type B: 400°F - 3308°F (205°C - 1820°C) |
| Dimensions (Cardboard tube for MUL) | OD” 1.125” (28.5mm)ID: 0.71” (18mm) |
| Aluminum Foil Thickness | 3 mil (0.0762 mm) |

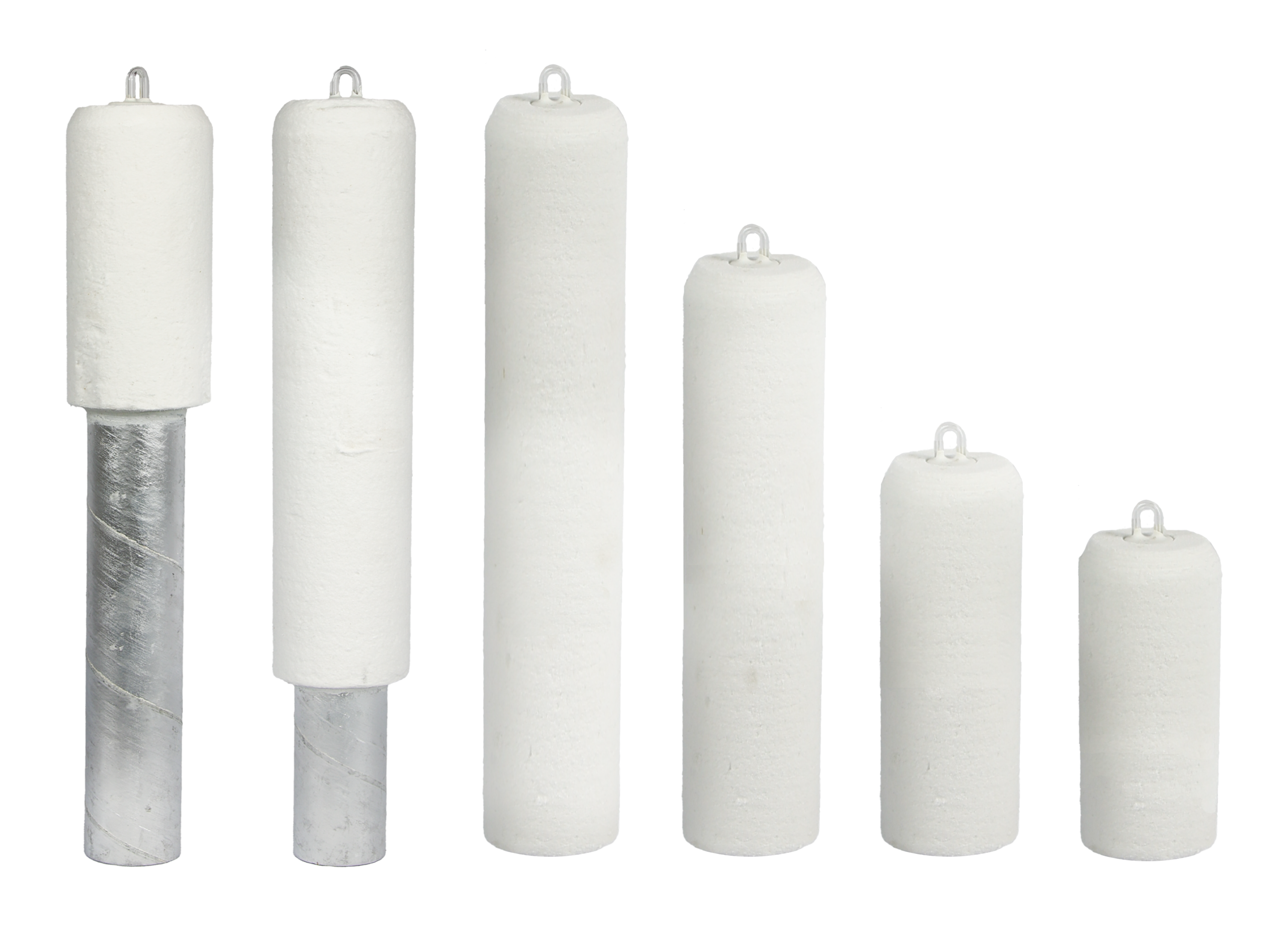

| With Aluminum Foil | |

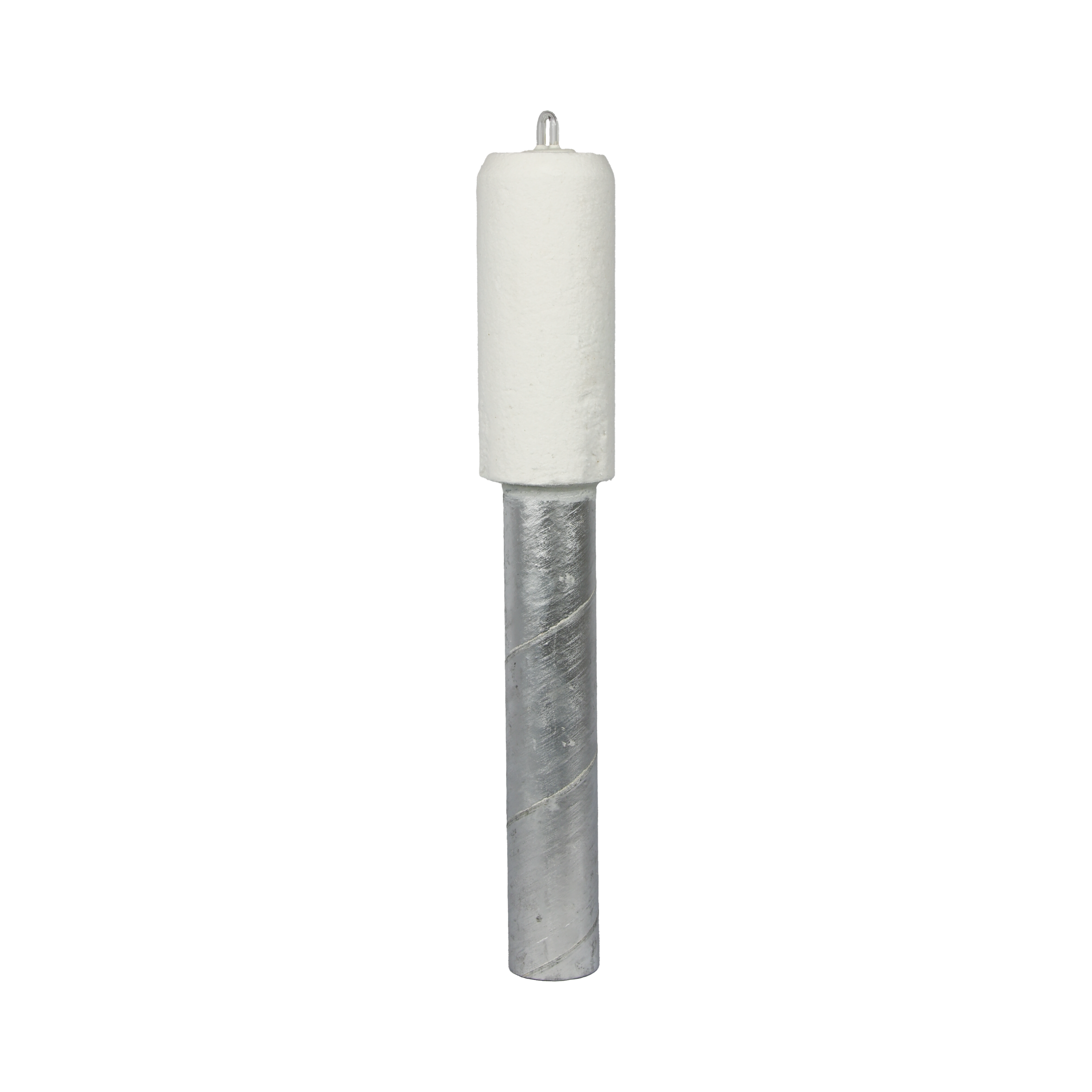

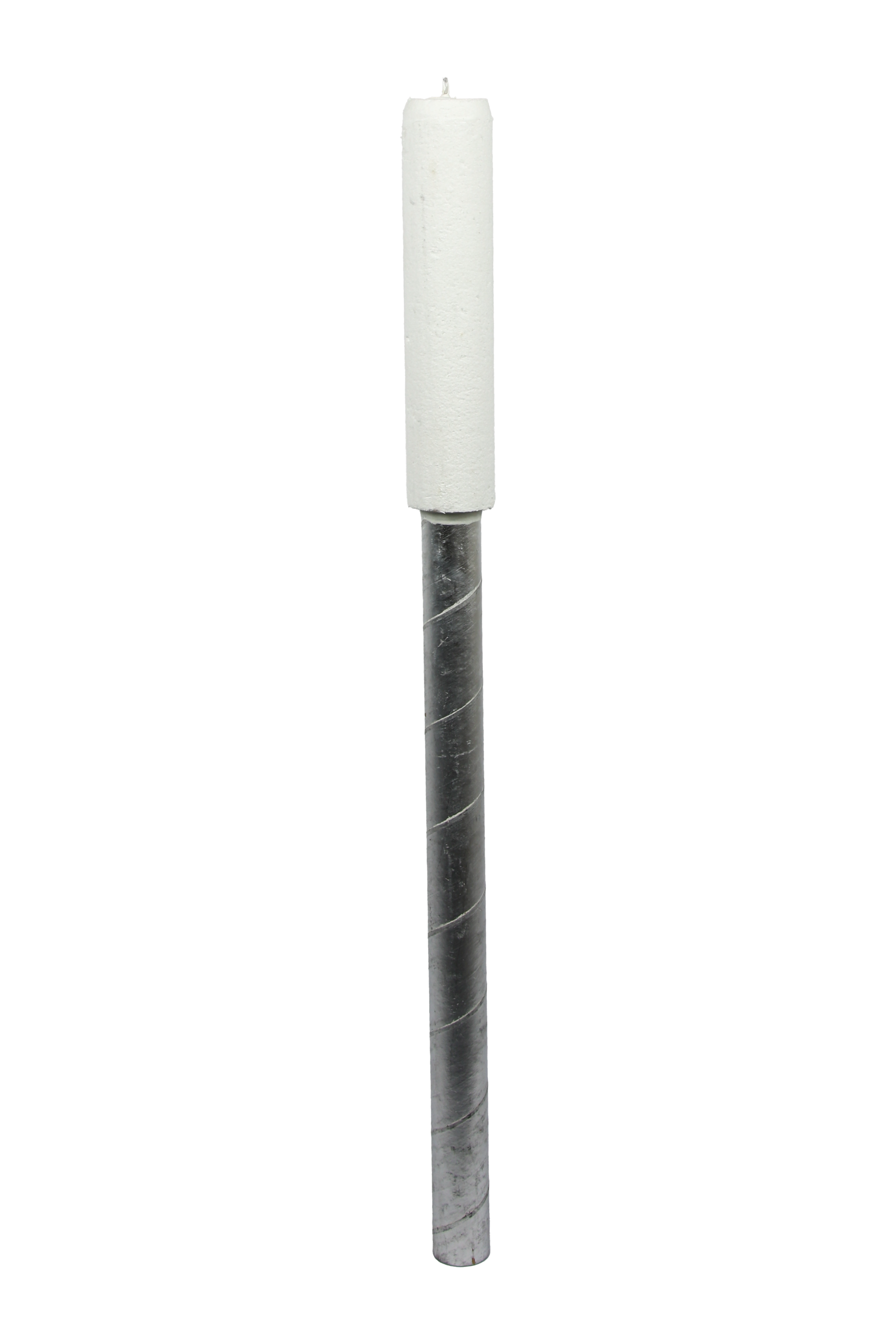

| MXT-xx-12F5 | 11” long w/ 4” fiber sleeve and 7” Aluminum foil |
| MXT-xx-12F9 | 11” long w/ 8” fiber sleeve and 3” Aluminum foil |

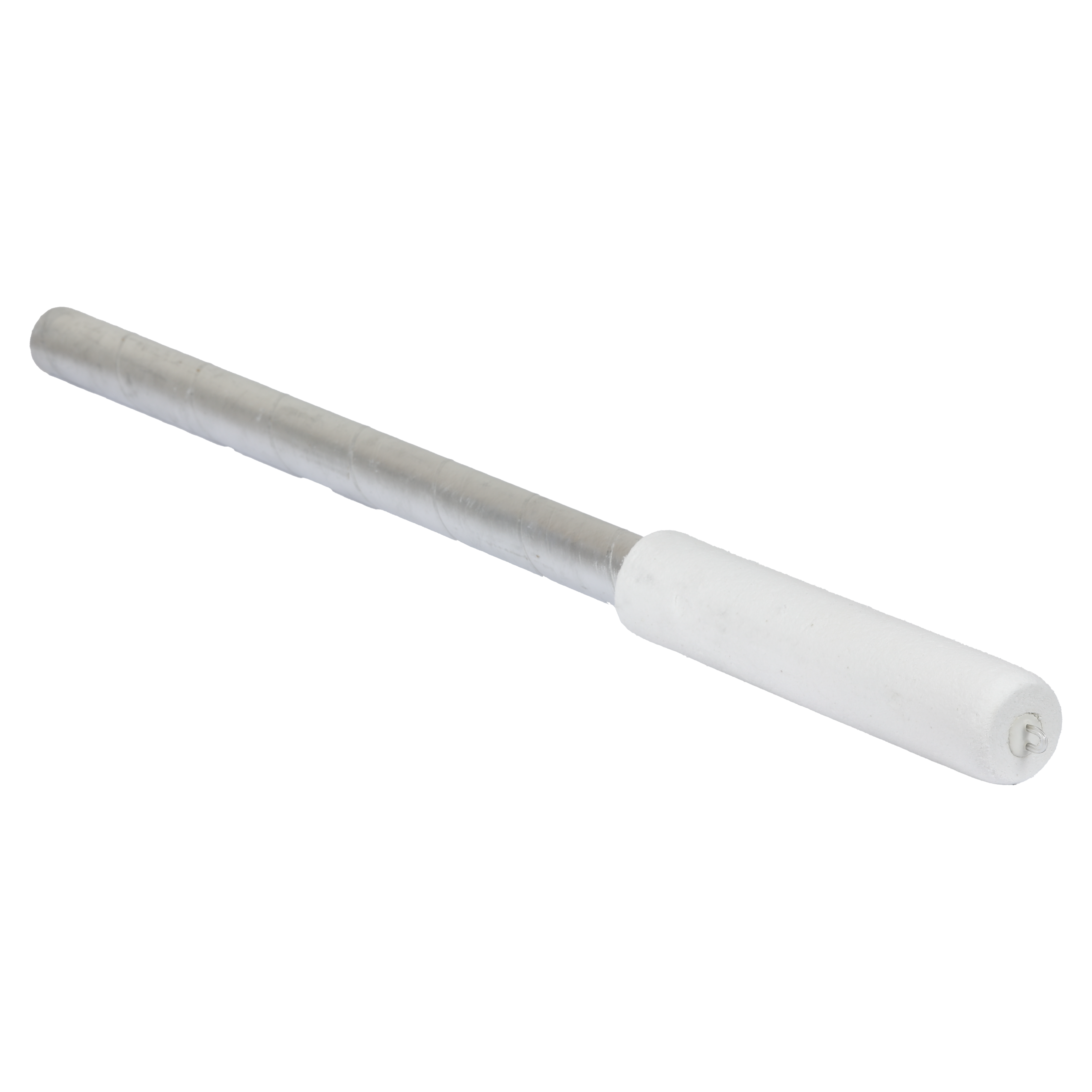

| MXT-xx-24F9 | 24” long w/ 8” fiber sleeve and 16” Aluminum foil |

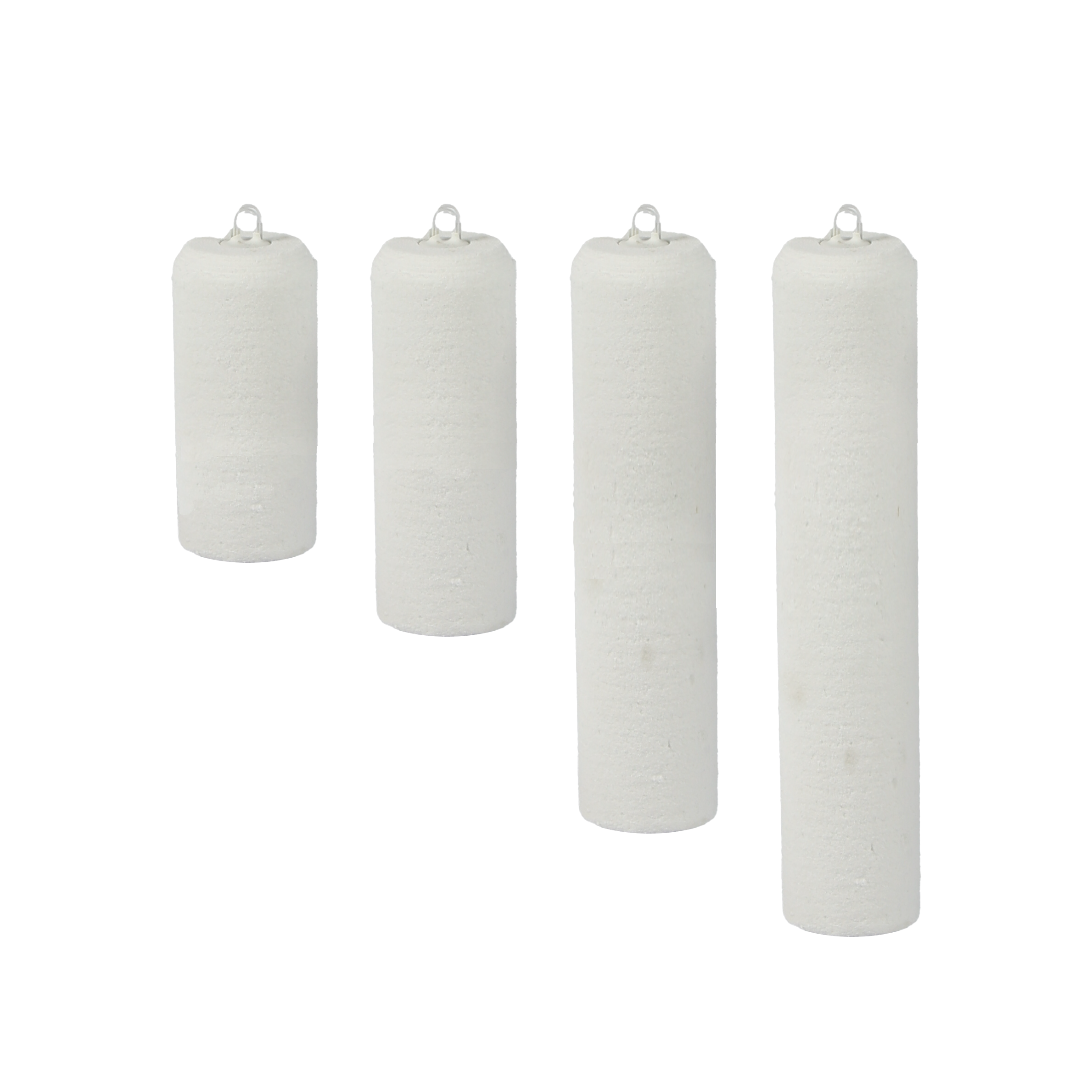

| Without Aluminum Foil | |

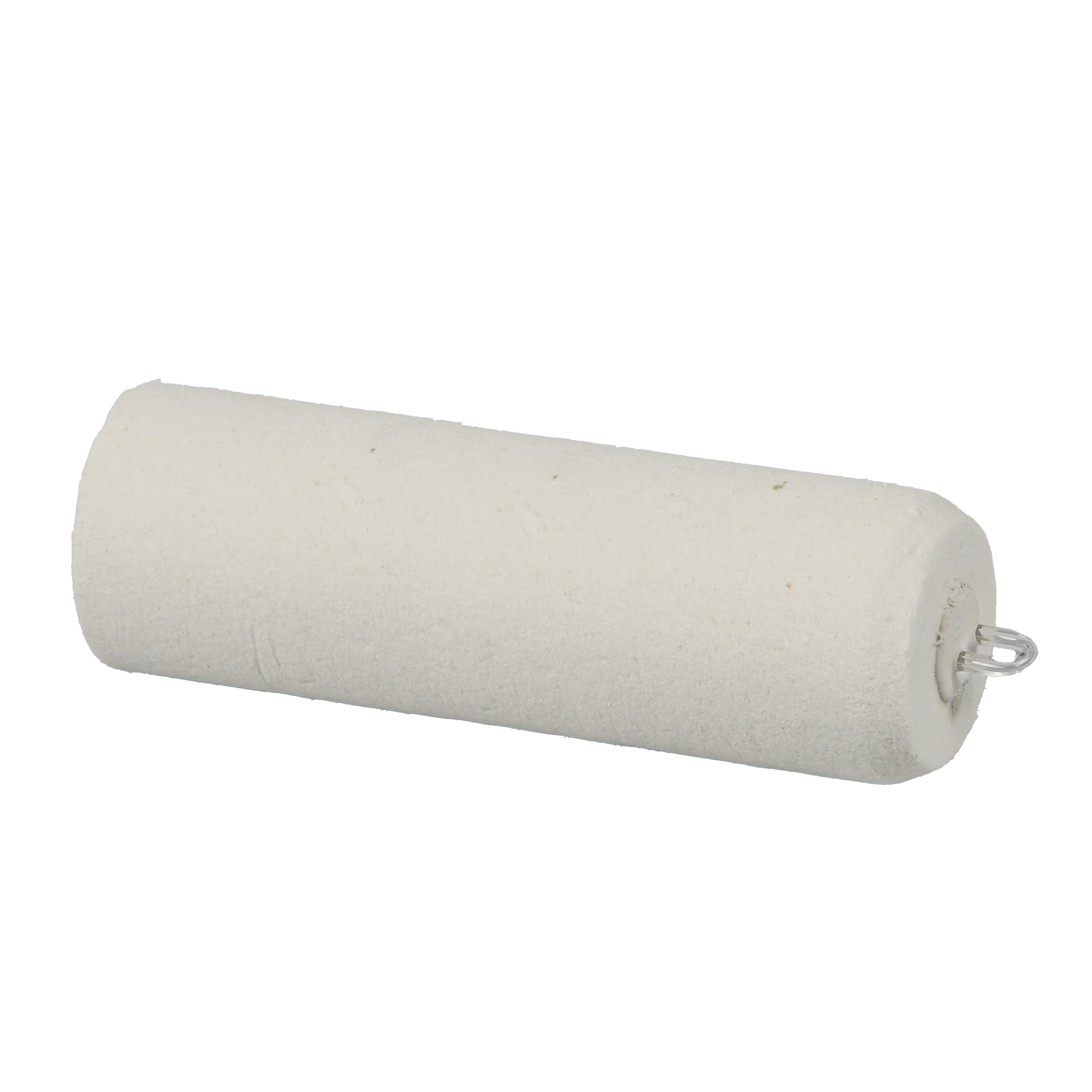

| MXT-xx-04 | 4” long w/ 4” fiber sleeve |

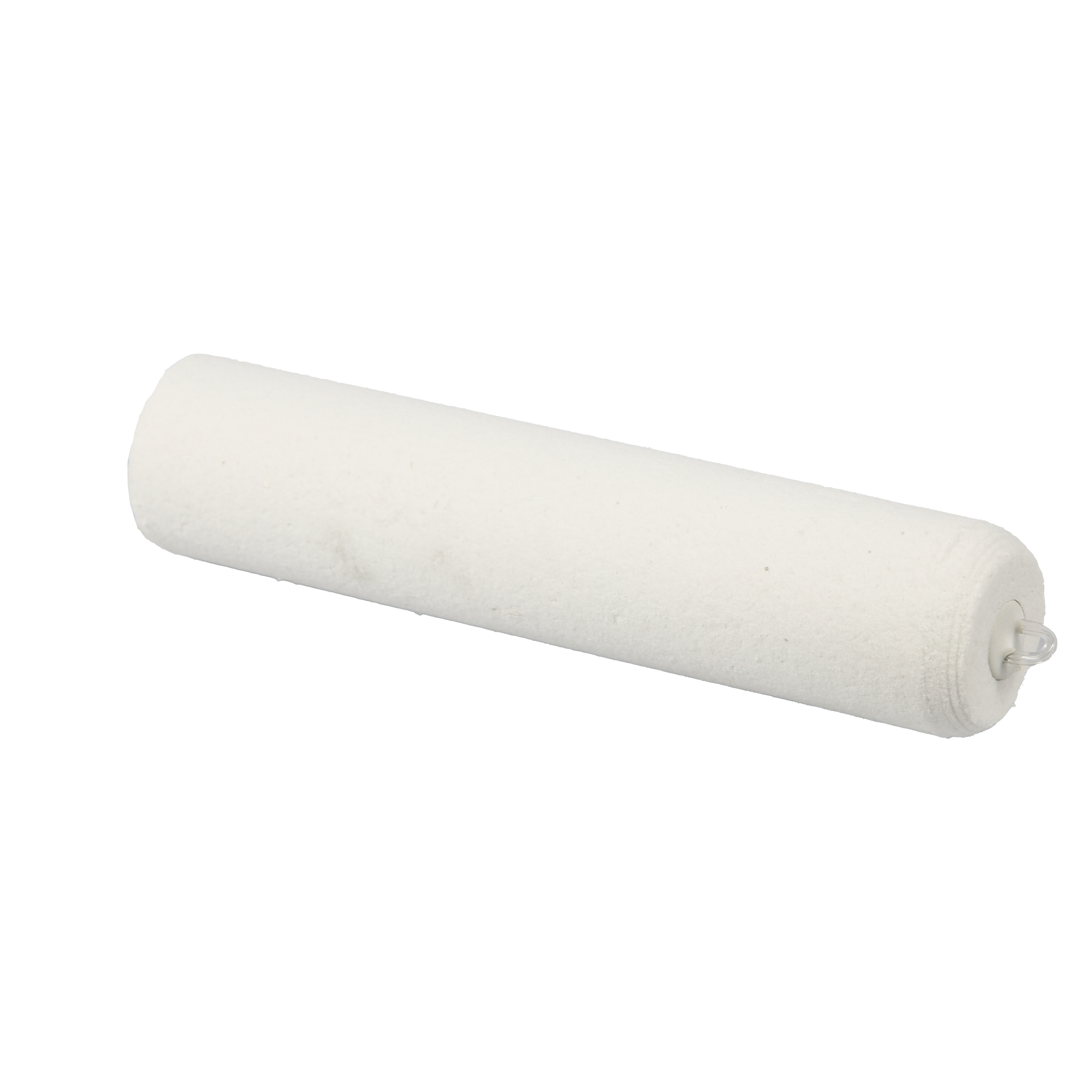

| MXT-xx-08 | 8” long w/ 8” fiber sleeve |
| Thermocouple type | |
| xx=10 | Type-S |
| xx=630 | Type-B |
